The Box Spawner Add-in for RoboDK is a productivity tool designed to programmatically generate 3D box objects within a station. This Add-in provides tools to automate the creation, scaling, and placement of components, making it ideal for simulating pick-and-place, palletizing, or conveyor-fed applications.

The Box Spawner Add-in can also be used to customize spawner locations, box dimensions, and randomization parameters through a Python script, which can be triggered directly from a RoboDK Program.

The Add-in supports multiple spawner locations by utilizing a spawner ID in program calls.

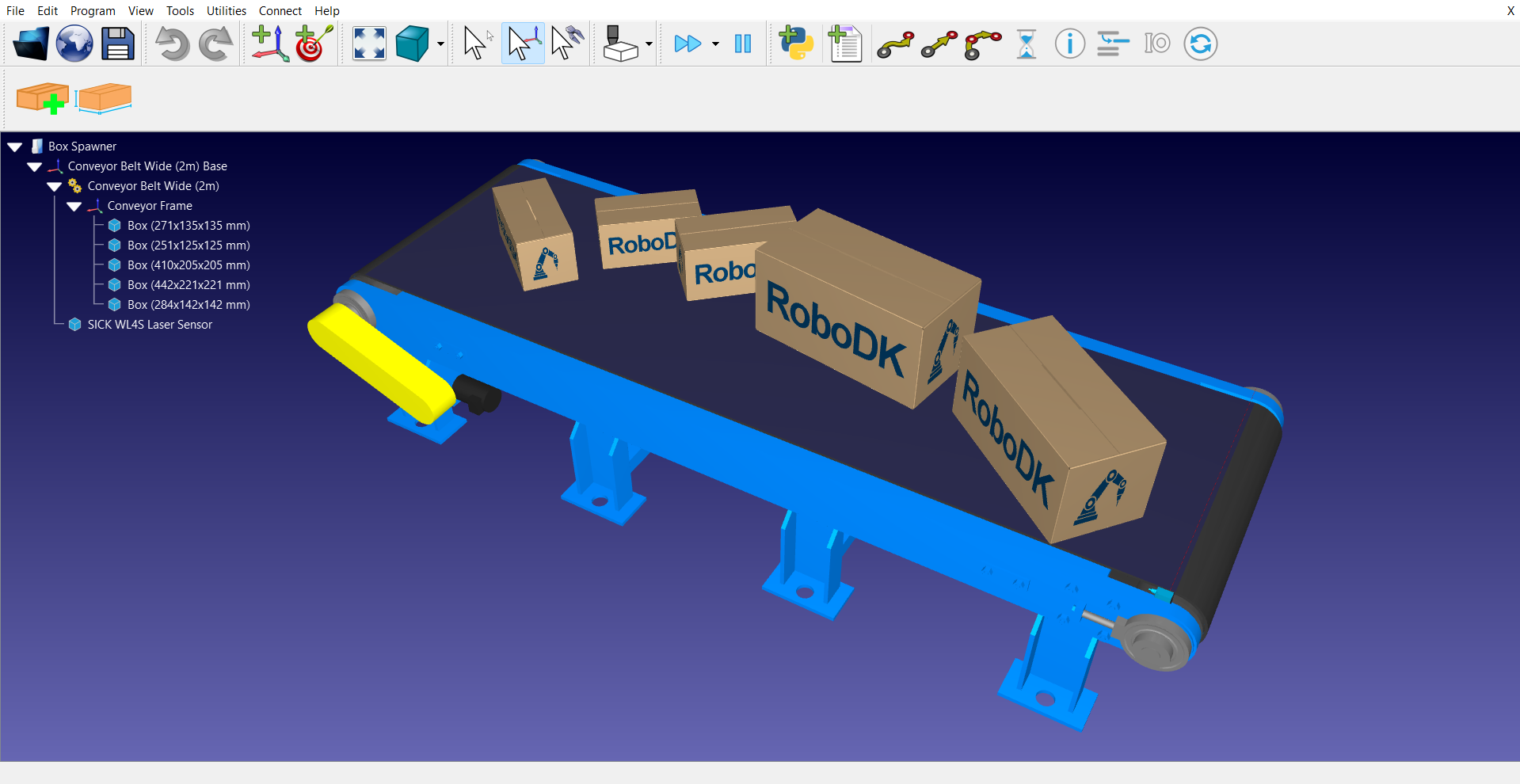

Addin Box Spawner - Image 1

Note: You cannot customize the object that is being spawned in this Add-in. The default box object with RoboDK’s logo and name will only be spawned.

Installation

You can find and install the Box Spawner Add-in from the RoboDK Add-ins Library.

Once installed, the Add-in integrates into the RoboDK interface, enabling both manual control through a UI and automated triggers via station scripts.

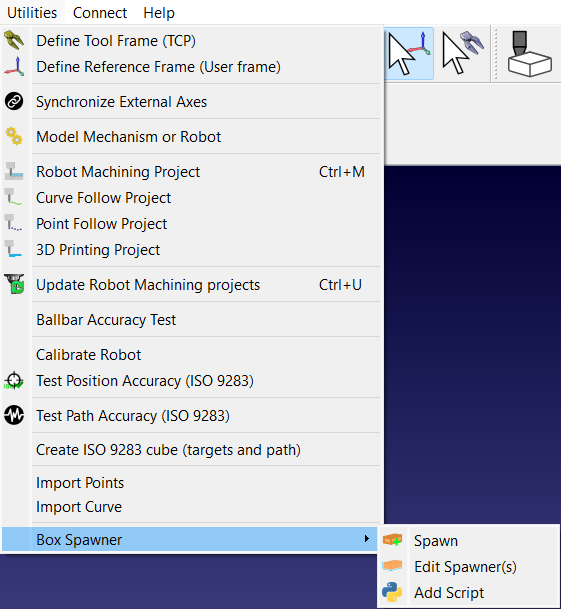

Addin Box Spawner - Image 2

Using the Editor

You can find the Box Spawner configuration settings by clicking on Utilities ➔ Box Spawner ➔ Edit Spawner(s) section. The settings are organized into four sections: Size, Spawn, Relocation, and Randomization. It features a dynamic frame list that refreshes based on your active station, ensuring you only select valid items for spawn and relocation targets.

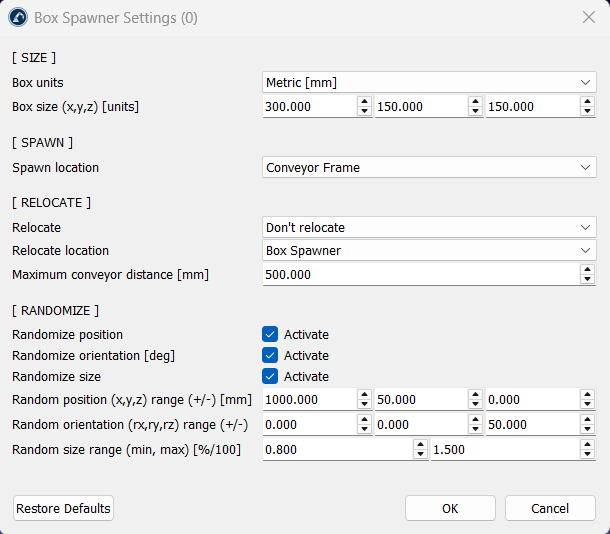

Addin Box Spawner - Image 3

Size and Units

Users can define the physical properties of the generated boxes to match specific project requirements.

The parameters include:

1.Unit Systems: Supports both Metric (mm) and Imperial (in) systems.

2.Base Dimensions: Allows input of specific X, Y, and Z values to determine the volume of the box.

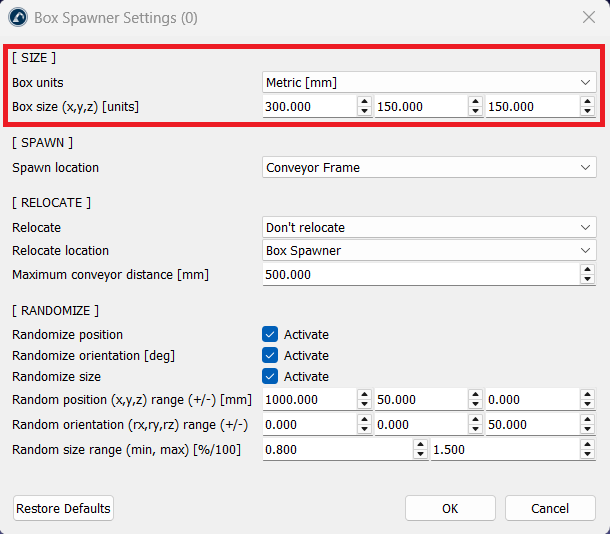

Addin Box Spawner - Image 4

Note: Automatic naming takes place and every spawned box is labeled in the station tree with its exact dimensions for easy identification (e.g., Box (400x200x200 mm)).

Spawn Location

The add-in uses a hierarchical approach to placement which includes input in the following way:

1.Reference Frame: You can designate a specific coordinate system (Frame) or the Station itself as the "Spawn Location".

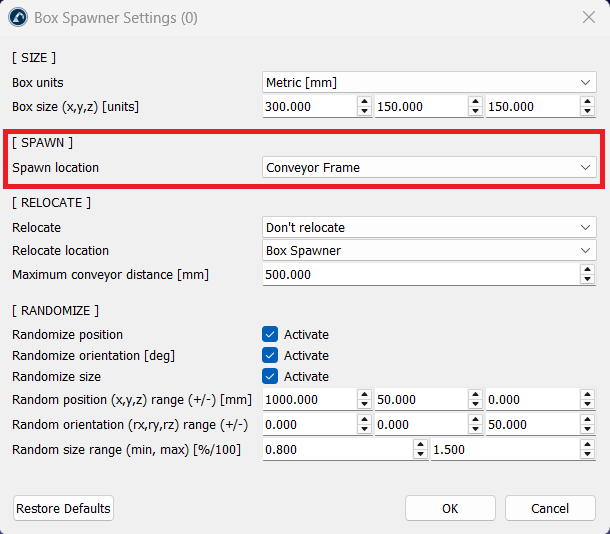

Addin Box Spawner - Image 5

Note: The system validates the existence and type of the parent frame before spawning to prevent simulation errors by doing some safety checks.

Relocation and Conveyor Attachment

This feature allows objects to transition from their spawn point to a moving mechanism automatically using the following options:

1.Relocation Modes:

a.Closest Conveyor: Automatically detects and attaches the box to the nearest conveyor mechanism.

b.Specific Location: Transfers the box to a secondary pre-defined frame immediately after creation.

2.Distance Threshold: You can set a Maximum Conveyor Distance (default: 500mm). The box will only attach to a conveyor if it is within this range.

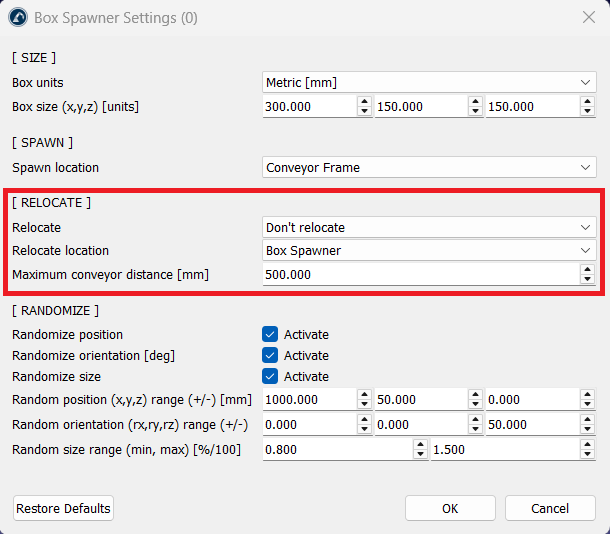

Addin Box Spawner - Image 6

Note: If a conveyor is selected but lacks a dedicated attachment frame, the add-in creates one automatically to ensure stable motion.

Randomization Logic

To simulate real-world variability and "noise", the add-in offers three layers of randomization:

1.Position: Randomly offsets the box within a user-defined +/- X, Y, Z range.

2.Orientation: Randomizes the rotation (Rx, Ry, Rz) in degrees, useful for simulating misaligned items on a belt.

3.Scale: Adjusts the overall size of the box based on a minimum and maximum percentage factor (e.g., 0.6 to 1.0).

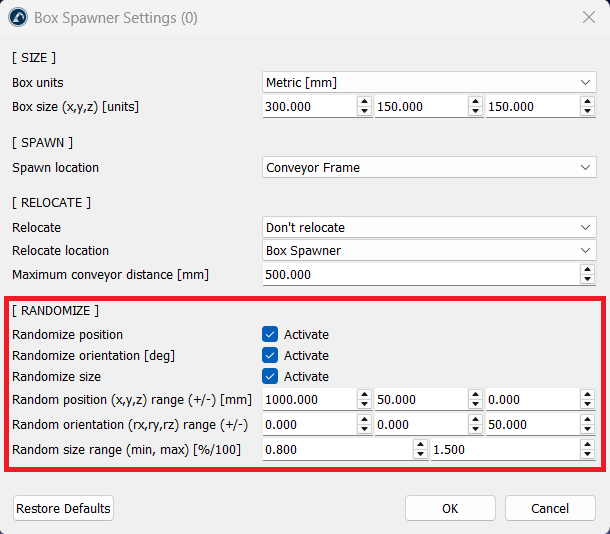

Addin Box Spawner - Image 7

Note: The add-in provides checkboxes so that you can choose which parameter(s) to randomize.

Multiple Spawner Profiles

The Add-in supports Multi-ID configurations. By assigning different IDs (e.g., ID 1 for "Large Boxes" and ID 2 for "Small Boxes"), you can save unique settings for each. Calling a specific ID in your program will execute the exact parameters saved for that profile.

Addin Box Spawner - Image 8

Manual vs. Programmatic Execution

There are two primary ways to utilize the Add-in: using the UI and through a program call.

1.UI Trigger: Use the Spawn button in the RoboDK toolbar to create a box instantly using the current settings (defaulting to Spawner ID #0).

2.Program Call: For full automation, use the Add Script feature. This inserts a python file named SpawnBox into your station. You can then add the given command to any RoboDK Program in order to integrate the box spawning into your program flow:

Call SpawnBox(ID)

Addin Box Spawner - Image 9

Note: The Add Script can be accessed by selecting Utilities ➔ Box Spawner ➔ Add Script.
