5 axes cnc
#1

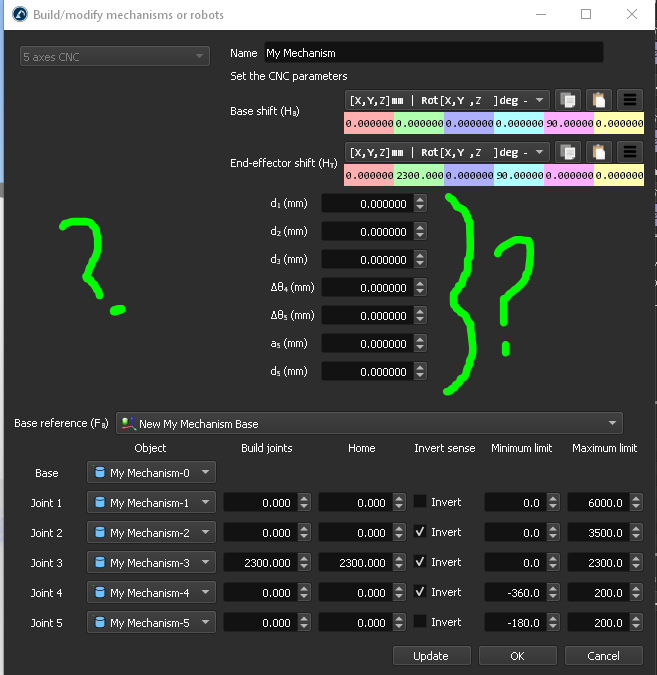

What are these dimensions for please? An image for machine setup would be useful
Regards
Andy


Attached Files Thumbnail(s)

#2
We don't have an image to depict this generic 5-axis CNC. Building a 5-axis CNC is available only under developer mode and this is meant to be used for internal purposes.

However, I attached a sample project that shows how a generic 5-axis CNC can be modelled. Let us know if you have a 3D model that you need help with.


Attached Files
.rdk   Sample-5-axis-CNC.rdk (Size: 224.29 KB / Downloads: 57)
#3
Thanks for offering to help! I've emailed you my station file as the model can't be shared online
Regards
Andy
#4
Hi has any progress been made on this please
regards
Andy
#5
Hi Andy, I'm sorry for the delays, I just got back to you.
#6
Thanks - station looks ideal
