About associating objects with frames

Hello RoboDK team,

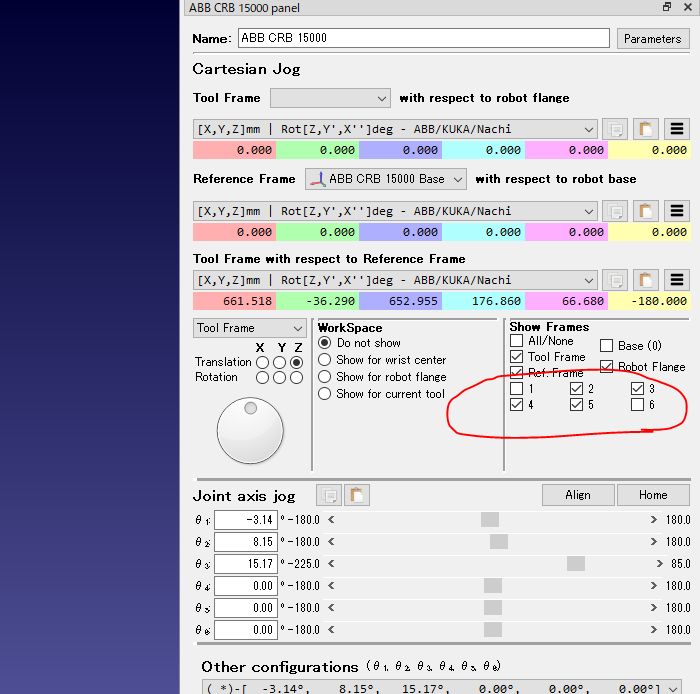

Is it possible to associate an object with frames 1, 2, and 3 in the attached image?

Look forward to your reply.
Best Regards,

Keisuke Sakai

Attached Files Thumbnail(s)
Hi Keisuke,

You can follow these steps to attach an object to a robot:
  1. Move the object to the location you would like to attach it.
  2. Select Tools-Run Script
  3. Select Add_Object_To_Robot
  4. Enter the joint index you would like to attach it to. For example, joint 3 you would be index 3.
You should then see the object attached to the robot (as part of the robot).

Hi Albert,

Thanks for your reply.
I'll try it once.

best regards

Keisuke Sakai
