CIRCLE APT INTERPRETER
smooker Offline
Junior Member
*
Posts: 6
Threads: 2
Joined: Aug 2020
Reputation: 0
#1
04-01-2021, 02:28 PM

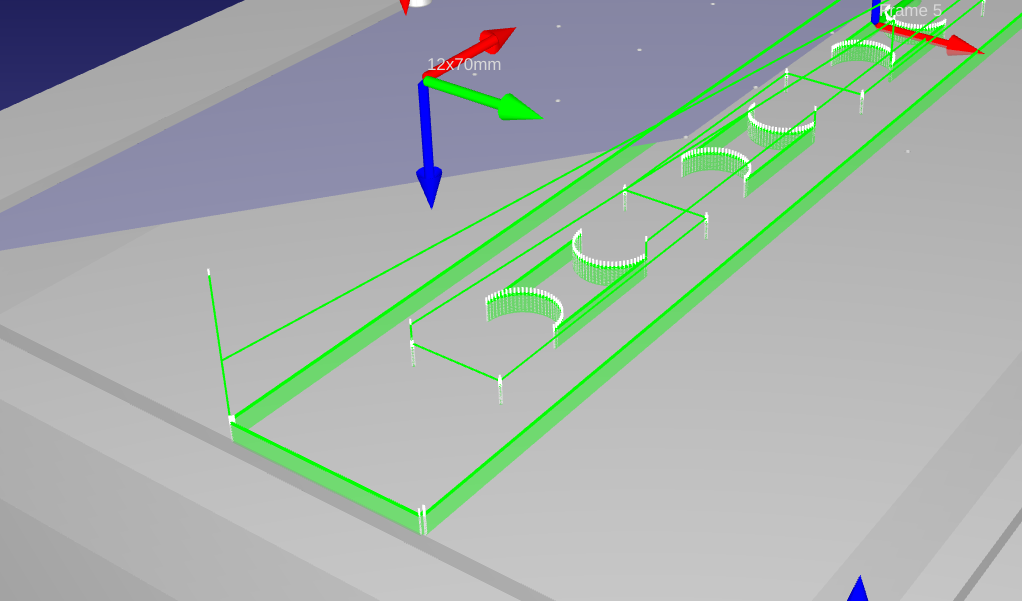

latest ver
[Image: Screenshot_2021-04-01_17-17-45.png]

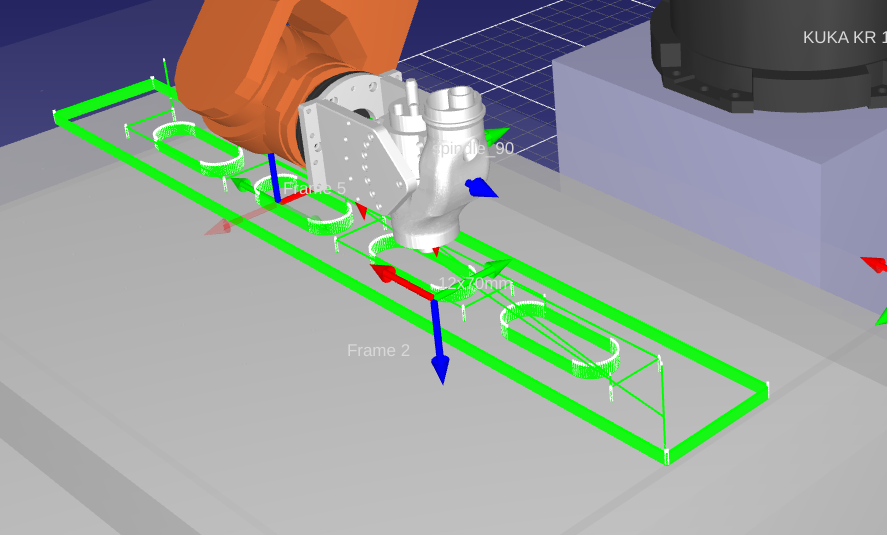

ver 5.1.0
[Image: Screenshot_2021-04-01_17-19-16.png]


Attached Files Thumbnail(s)

Find
Reply
Albert Offline
Moderator
*****
Posts: 1,385
Threads: 1
Joined: Apr 2018
Reputation: 69
#2
04-01-2021, 04:34 PM
Can you provide the APT file?

You may have to change this setting:
  1. Tools-Options-CAM
  2. Invert arcs automatically
Find
Reply
smooker Offline
Junior Member
*
Posts: 6
Threads: 2
Joined: Aug 2020
Reputation: 0
#3
04-01-2021, 04:43 PM (This post was last modified: 04-01-2021, 04:48 PM by smooker.)
(04-01-2021, 04:34 PM)Albert Wrote: Can you provide the APT file?

You may have to change this setting:
  1. Tools-Options-CAM
  2. Invert arcs automatically

Here it is.
Will try it just now.
[attachment=2023 Wrote:smooker pid='8175' dateline='1617295392']
(04-01-2021, 04:34 PM)Albert Wrote: Can you provide the APT file?

You may have to change this setting:
  1. Tools-Options-CAM
  2. Invert arcs automatically

Here it is.
Will try it just now.

Seems OK.
Thank you Albert!

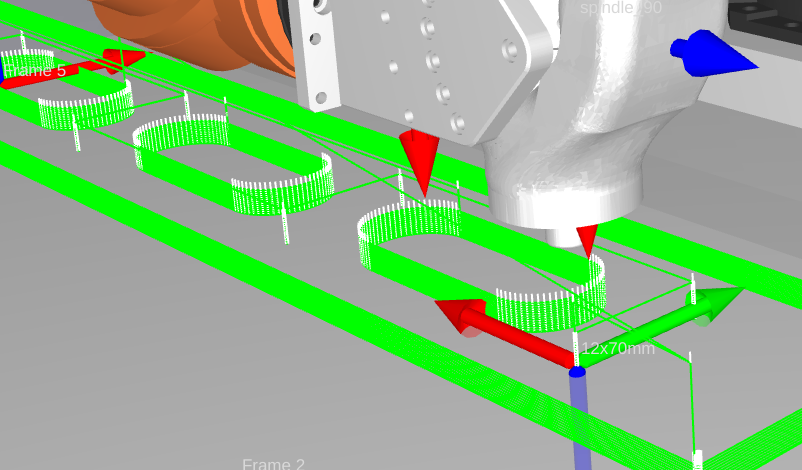

Attached Files Thumbnail(s)


.apt   06TRETA.apt (Size: 104.74 KB / Downloads: 125)
