Curves Tool Orientation
mmccrea_BAT
Junior Member
Posts: 4
Threads: 4
Joined: Jul 2020
Reputation:
0
#1
10-06-2020, 11:27 AM
When I import curves from Solidworks the tool is always 45degrees to the curve as shown below, I would like the tool to be 90 degrees to the curve, I would like the grey arrows to straight up. How do I change this?
Thank you
mark
Quick Edit
Full Edit
Olivier
Moderator
Posts: 167
Threads: 0
Joined: Aug 2020
Reputation:
19
#2
10-06-2020, 02:02 PM
Hello mmccrea_BAT,
Are you using the plugin for RoboDK in solidwork to import your curve?

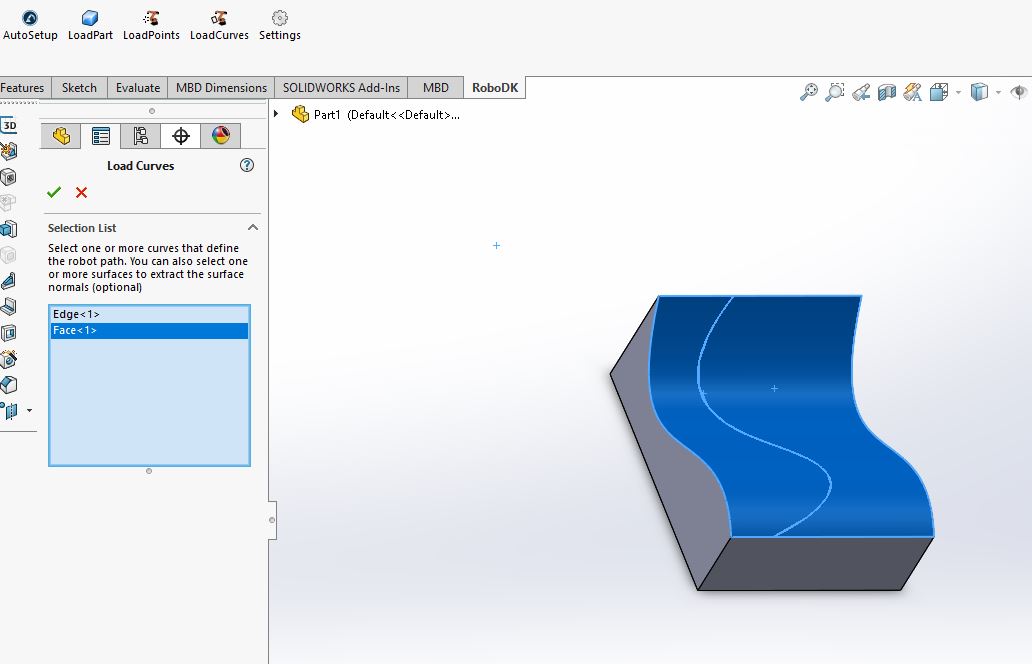

If yes, then when you select the curve, select a surface with it and the tool orientation will be normal to that surface in RoboDK.
Olivier
Attached Files
Thumbnail(s)
Quick Edit
Full Edit
