Display the order of motion (step of curve path)
#1
Hello everyone,

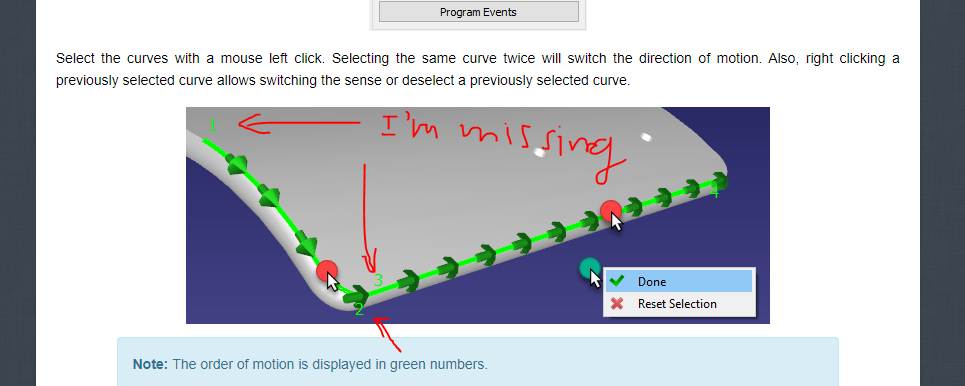

Can you guys help me that i can not show the number for the order of motion, can you guys see this photo. Many Thanks


Attached Files Thumbnail(s)

#2
Are you using the opaque tree? When you display the tree opaque you can't see text. This is a known bug but it has a workaround if you enable the PluginUIAdditions plugin (in Tools-Plugins).

If this is not the issue, can you provide us with a print screen of what you see?
#3
(11-12-2021, 04:02 AM)hoang_van_hoa Wrote: Hello everyone,

Can you guys help me that i can not show the number for the order of motion, can you guys see this photo. Many Thanks

Hello Albert,

thank you for your support
1. what is opaque tree ?

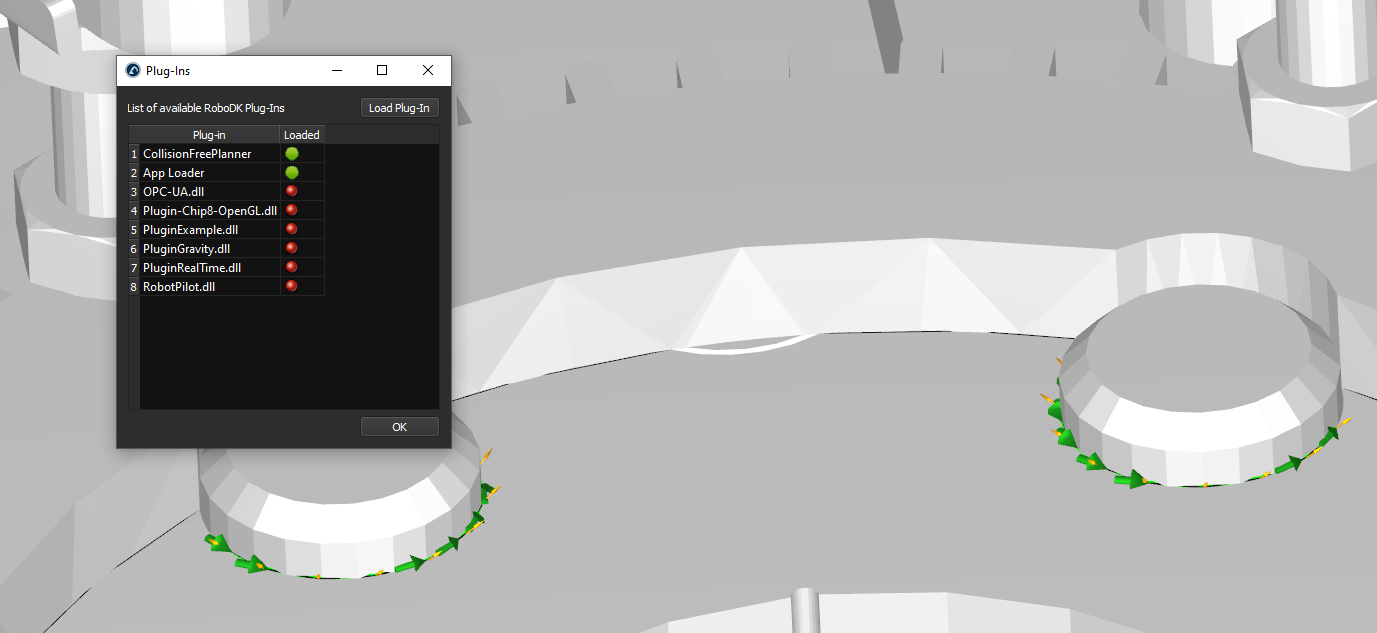

2. I don't see the PluginUIAdditions in tools-plugins
3. see my attached for my screen


Attached Files Thumbnail(s)

#4

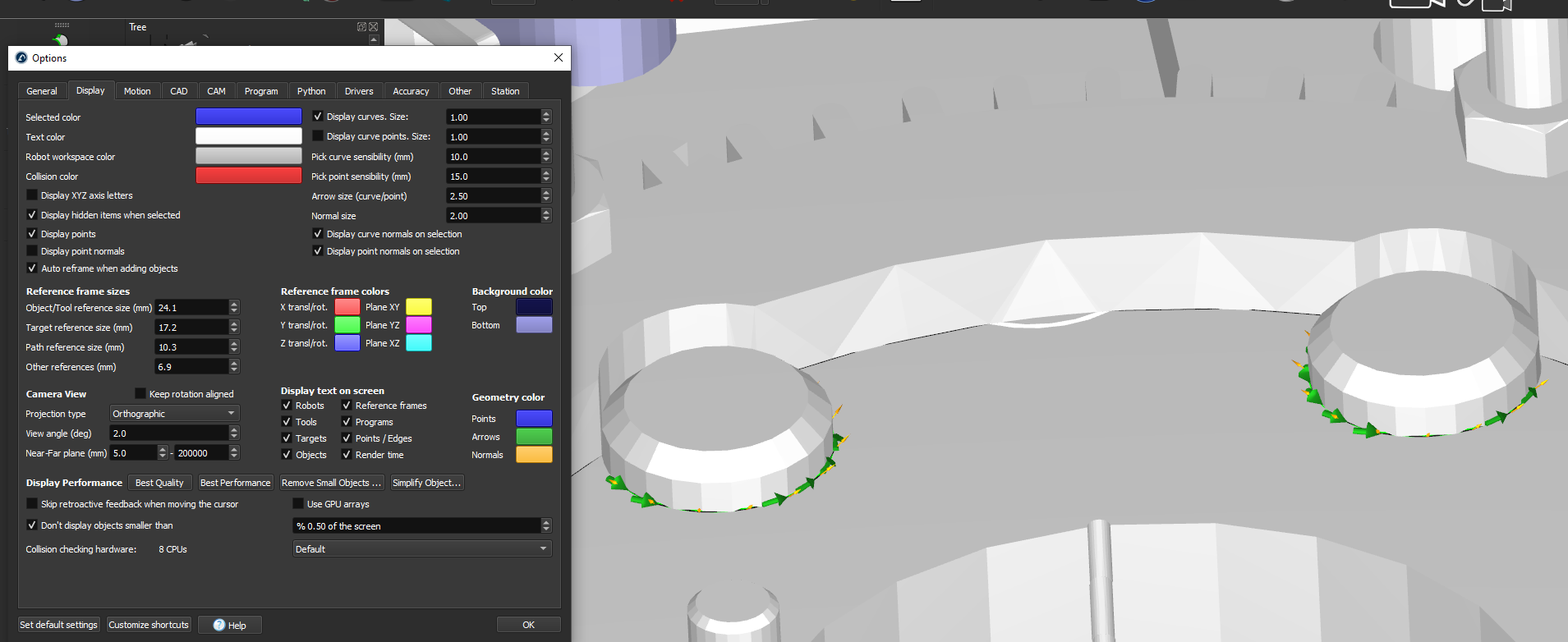

In one of the images you shared we can see that you changed the tree is opaque.

You can follow these steps to set the appearance of the tree back to default and see text on your screen:
  1. Select Tools-Options
  2. Select Display tree preference: Main Window (transparent)
  3. Restart RoboDK and retry
You can also update RoboDK to the latest version to see the plugin for UI additions (screen text works with this plugin and the side tree).
#5
Thank you Albert
