Hi Albert,

I am trying to do basically the same thing, but I am trying to create a zig-zag polishing pattern on this flat rectangle. I have gone into my settings an I have not been able to auto select the face of said rectangle.

I have exported some basic curves from CAD, but I would like them to zig-zag on the face.


I know this seems pretty basic, but any help would be appreciated.

[Sergei]

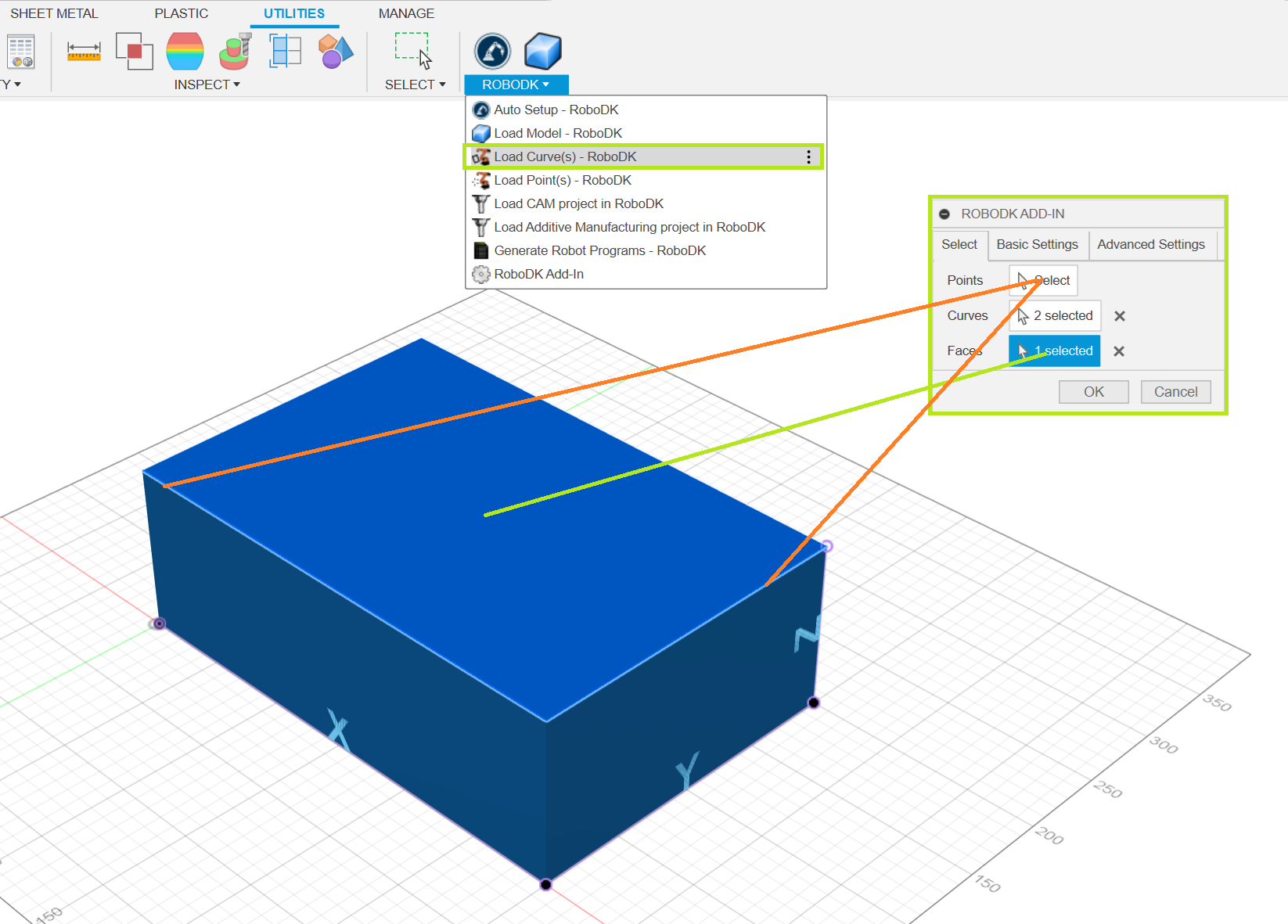

It's necessary to create the zig-zag curve (or any other) in CAD (eg. in Fusion) and then import it to RoboDK:



Alternatively, you can use the Surface Pattern Generator Add-in (https://robodk.com/addin/com.robodk.app....ngenerator):

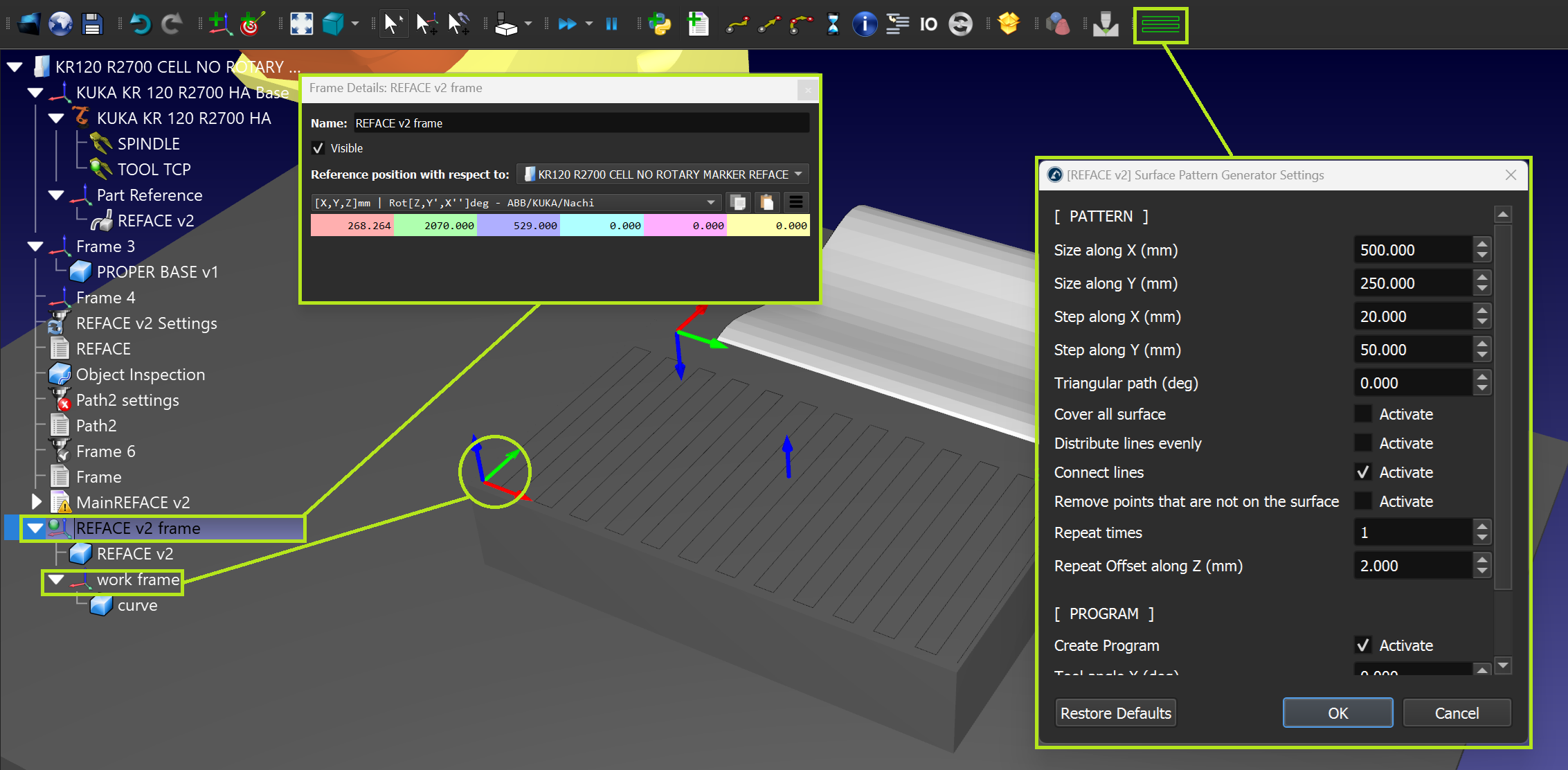

I attached your station with the curve added by the SPG add-in and the corresponding Curve Follow Project.

[mikerhodes]

Thank you very much!!
