G-Code Import Error
#1
To whom it may concern,

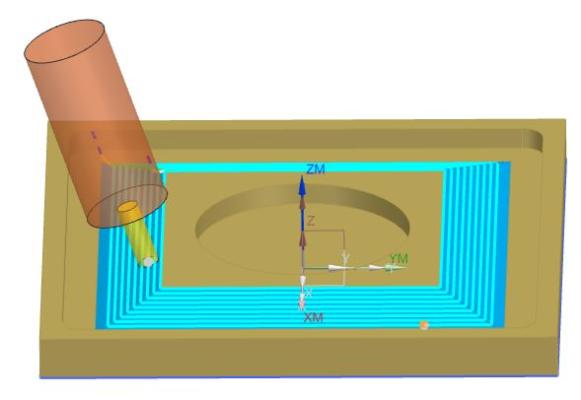

I have encountered this G-code import error (picture attached) multiple times when dealing with circular movements. RoboDK does not seem to handle negative radius values. Is this a known issue?


Attached Files Thumbnail(s)

#2
Hi gvhf,

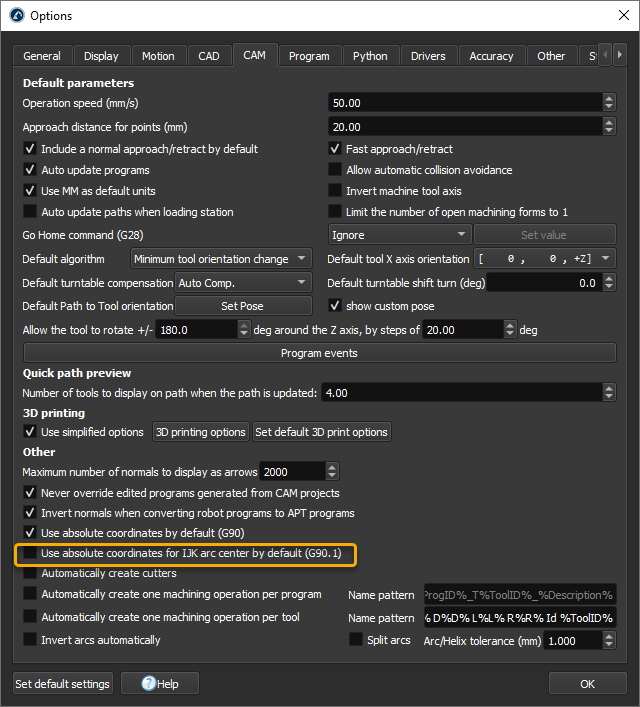

Have you tried activating this option:



Jeremy
#3
Hi Jeremy,

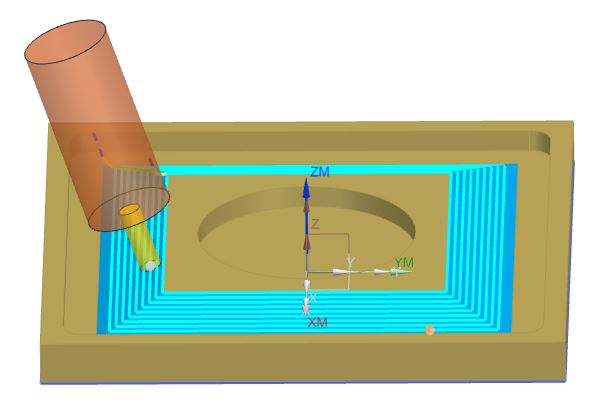

Yes I have tried activating that option.  The G-code import then displays no errors; however, the path is warped so the issue was not fixed. I have attached the tool path (.apt) and a picture of the imported path, which is supposed to be a simple cylinder.


Attached Files Thumbnail(s)


.apt   cavitycyl.apt (Size: 12.63 KB / Downloads: 46)
#4
Hi gvhf,

I informed our dev team of the issue and the other issue you bring here: https://robodk.com/forum/Thread-RoboDK-G...-Processor

Jeremy
#5
Thank you Jeremy! I appreciate the timely replies. Please keep me/this thread updated whenever the issues are resolved.
#6
Hi Jeremy,

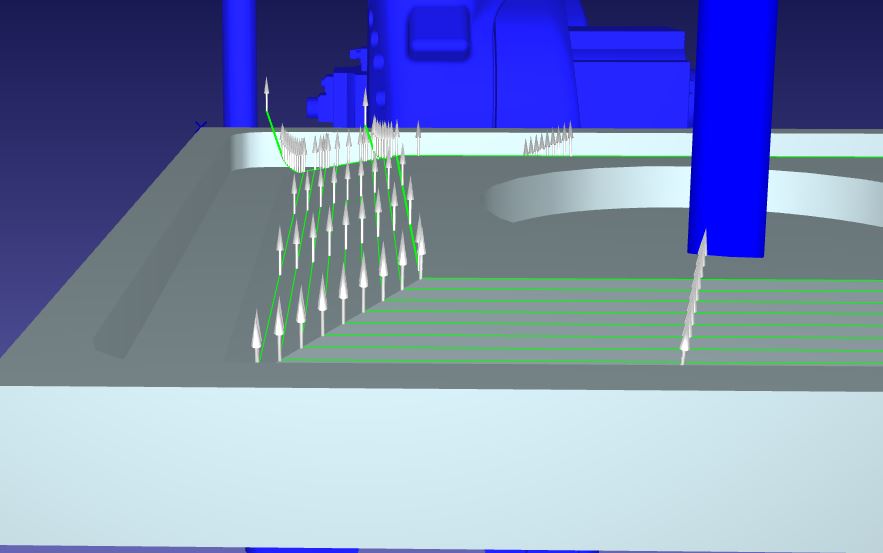

I have generated a sample 5-axis path (.apt tool path and figure attached). The .apt file carries the correct tool orientation; however, that orientation is not recognized when imported into RoboDK (figure attached) through a robot machining project. Two of the pyramid faces have the correct orientation, but two do not.

Thank you


Attached Files Thumbnail(s)


.apt   testingpathpoints.apt (Size: 5.68 KB / Downloads: 44)
#7
Thank you
