I am trying to build a 3 linear axes mechanism which has a pair of parallel axes.

firstly I built it with "Build/modify mechanism or robots" > "3 linear axes(H bot), while the 3 linear axes of H bot are vertical to each other and fixed.

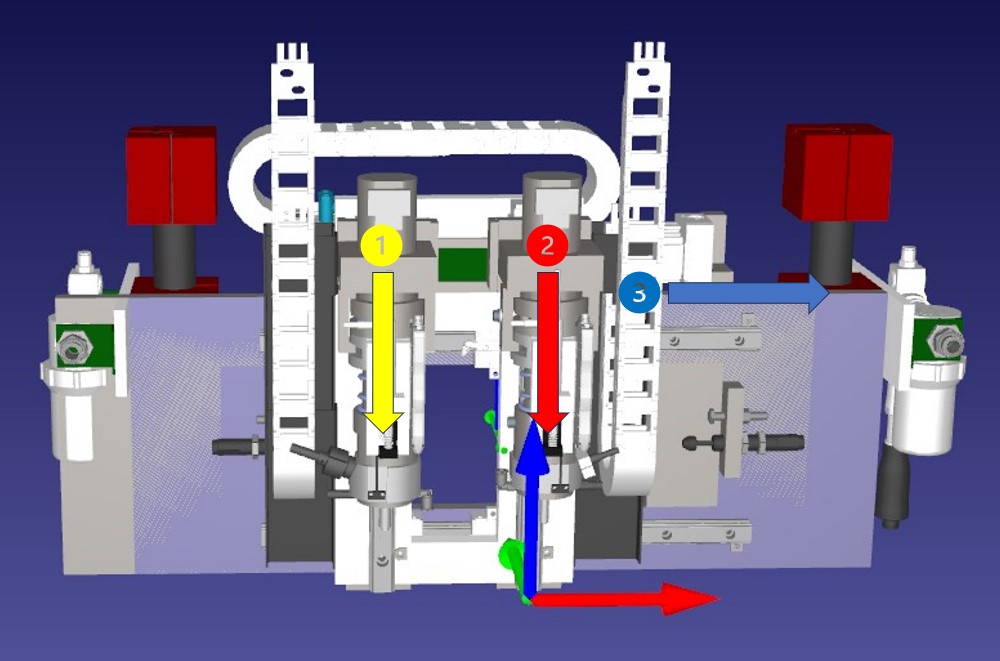

So, Is there a way to build a special 3 linear axes mechanism( as shown in the picture, axis 1 and axis 2 are parallel and axis 3 is vertical to these axes?

[Albert]

It is not possible to model the mechanism in your picture as one single mechanism but you can create 2 separate mechanisms.

[lavaman]



I take advantage of the "run" instruction to move the 2 separate mechanisms synchronously.


thanks

It is not possible to model the mechanism in your picture as one single mechanism but you can create 2 separate mechanisms.

[Albert]

Excellent! Thank you for your feedback.
