How to create a tool
#1
Hi everybody,

very nice and powerful software !

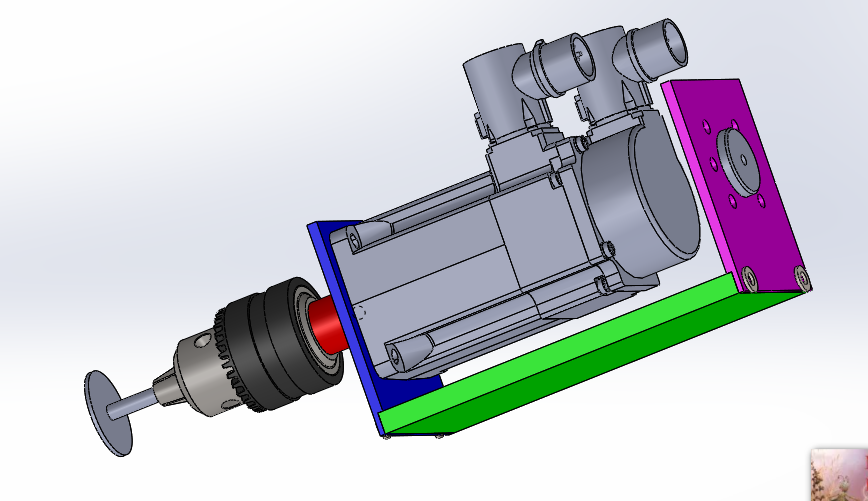

I'm using the trial version, and want to make a simulation with a UR10. I have designed a grinding tool with Solidworks, and want to use it in my simulation.
I tried to insert my assembly in stl or in stp format, by I didn't succed to place it on the robot fllange.

How can I do to do it?


Attached Files Thumbnail(s)

Thank you,


Raymond
Manager of Luxrobotic
Belgium

http://www.luxrobotic.com
#2
Hi Raymond,

Follow these steps to convert an object into a tool:
1-Open the 3D file in RoboDK (drag & drop to the main screen, or use File->Open)
2-Drag & drop the object into the robot item (inside the objects tree). The object will be automatically converted into a tool.
(the procedure is similar to RobotStudio)

You can reconvert any tool into an object by placing it back to a reference frame.
You should be able to import STL, STEP and IGES format without problems.

[Image: robot-forum-img1.png]

[Image: robot-forum-img2.png]
#3
Pati itu sangat susah sekali ya?
#4
The following video shows how to create a robot tool:
https://www.robodk.com/help.php#CreateTool
