# How to update the display after moving targets using the API

The attached Python script (also shown below) is my minimum example.  It moves the position of the first moveL instruction.  It seems to be moving the position because the robot path shows it, but the green polyline does not reflect the changed position.  The two attached images help to explain.

What step am I missing that will update the polyline on the screen?

Related question, the code adjusts the "target pose" but does not adjust the joints.  My hope is that the program would deal with the joints.  If that is a wrong assumption, then what is the recommended way to accomplish this?  In practice, the movements would not be this large but I wanted something that was easy to see on the screen.

Code:
```from robodk import robolink from robodk import robomath RDK = robolink.Robolink() currentProg = RDK.ItemList(8)[0] # Look at the instruction at index 6 - the first linear move in my case n = 6 currentInst = currentProg.Instruction(n) instName   = currentInst[0] instType   = currentInst[1] moveType   = currentInst[2] isJoint    = currentInst[3] targetPose = currentInst[4] joints     = currentInst[5] print(f'Index = {n}   Name={instName}   Type={instType}   moveType={moveType}') # Get the current target position position = targetPose.Pos() x = position[0] y = position[1] z = position[2] print(f'Original -> {x:.6f} {y:.6f} {z:.6f}') # Change the position and update the target Mat newX = x + 150 newY = y + 0 newZ = z + 200 print(f'Updated -> {x:.6f} {y:.6f} {z:.6f}') targetPose = targetPose.setPos([newX, newY, newZ]) # Update the instruction currentProg.setInstruction(n, instName, instType, moveType, isJoint, targetPose, joints) # Just for kicks, print the new position to see if it stuck currentInst = currentProg.Instruction(n) targetPose = currentInst[4] position = targetPose.Pos() x = position[0] y = position[1] z = position[2] print(f'Checked -> {x:.6f} {y:.6f} {z:.6f}') # Try to update the display result = currentProg.Update(1, 1000, -1, -1) validCount = result[0] progTime   = result[1] progDist   = result[2] validRatio = result[3] message    = result[4] print(f'Valid lines = {validCount}   Time={progTime:.1f}   Distance={progDist:.1f}   Ratio={validRatio:.3f}') print(message)```

Attached Files

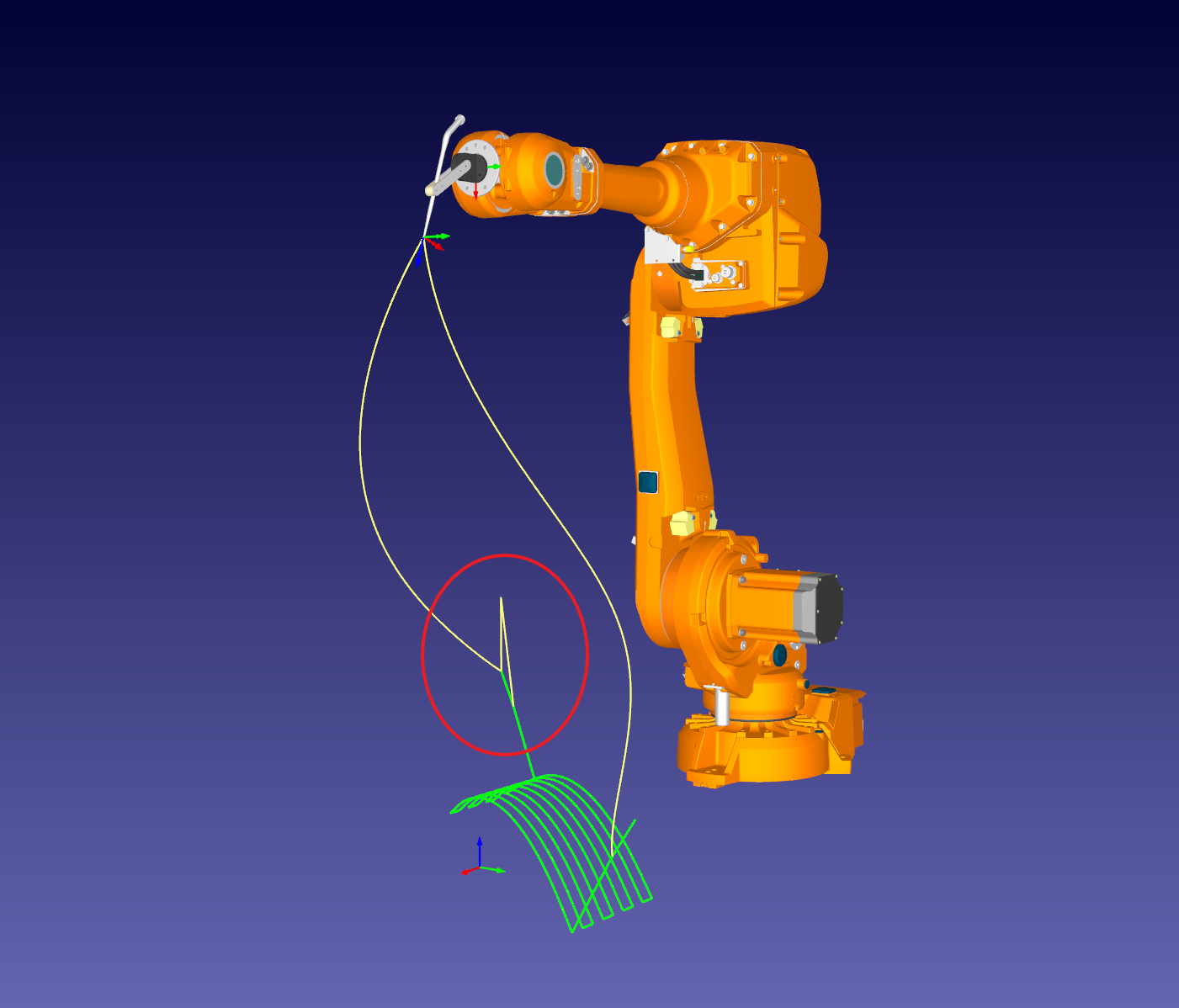

The green line reflects the path you want to follow (curve) and the yellow line represents the path that the TCP follows (program trace) including the section from where the robot started.

So if you move the robot somewhere else and update the program (for example by double clicking on it), it will show the yellow path starting from that point.
Hello,

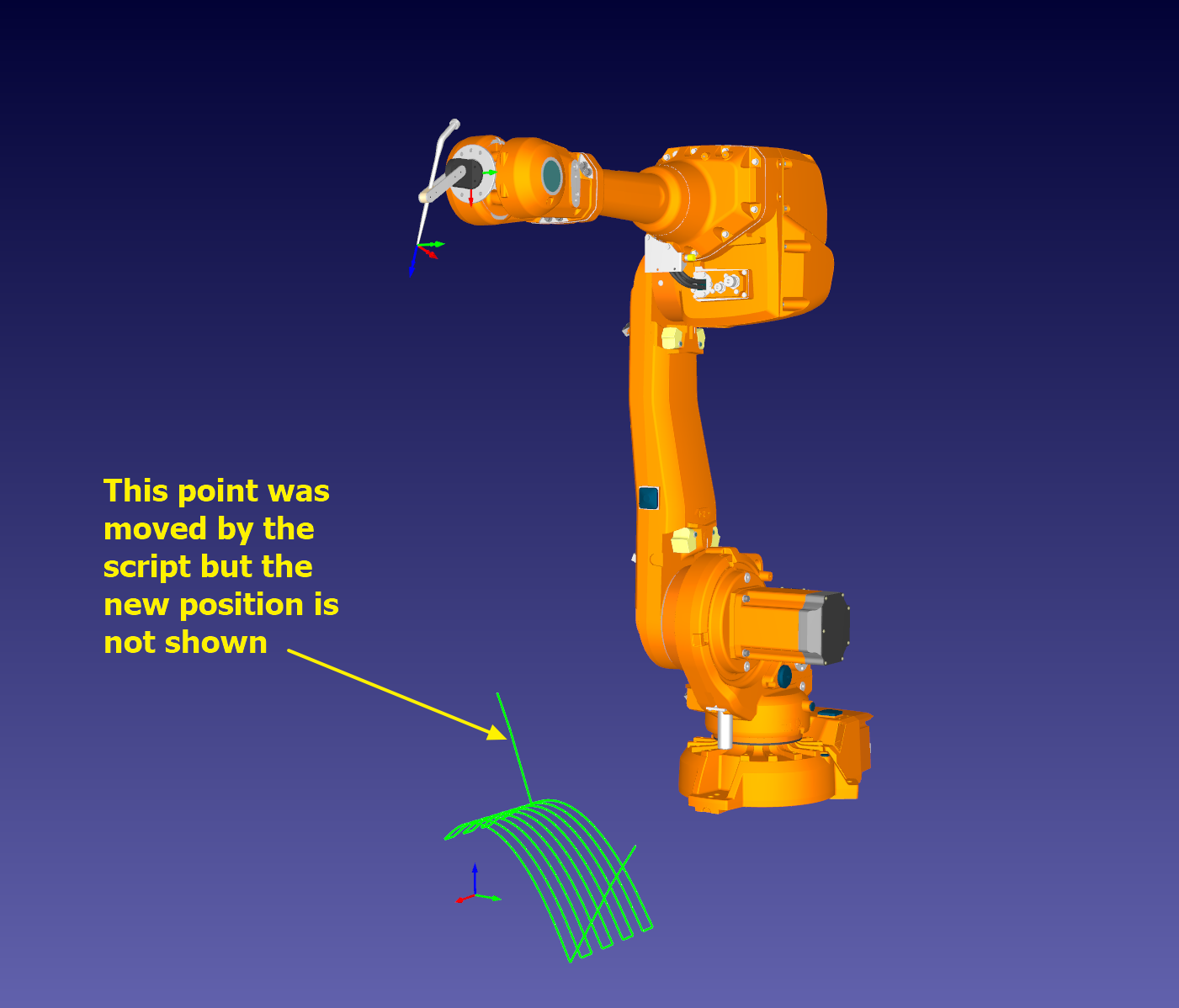

I must not have explained it properly - the script in the post changes a position in the path but the green line does not reflect the change. The program trace confirms that the change was made, but the green line needs to be updated on the screen.
The yellow line showing the program path should be updated by calling Update.

If this is not the issue, then I didn't understand the question.
