[pixalate]

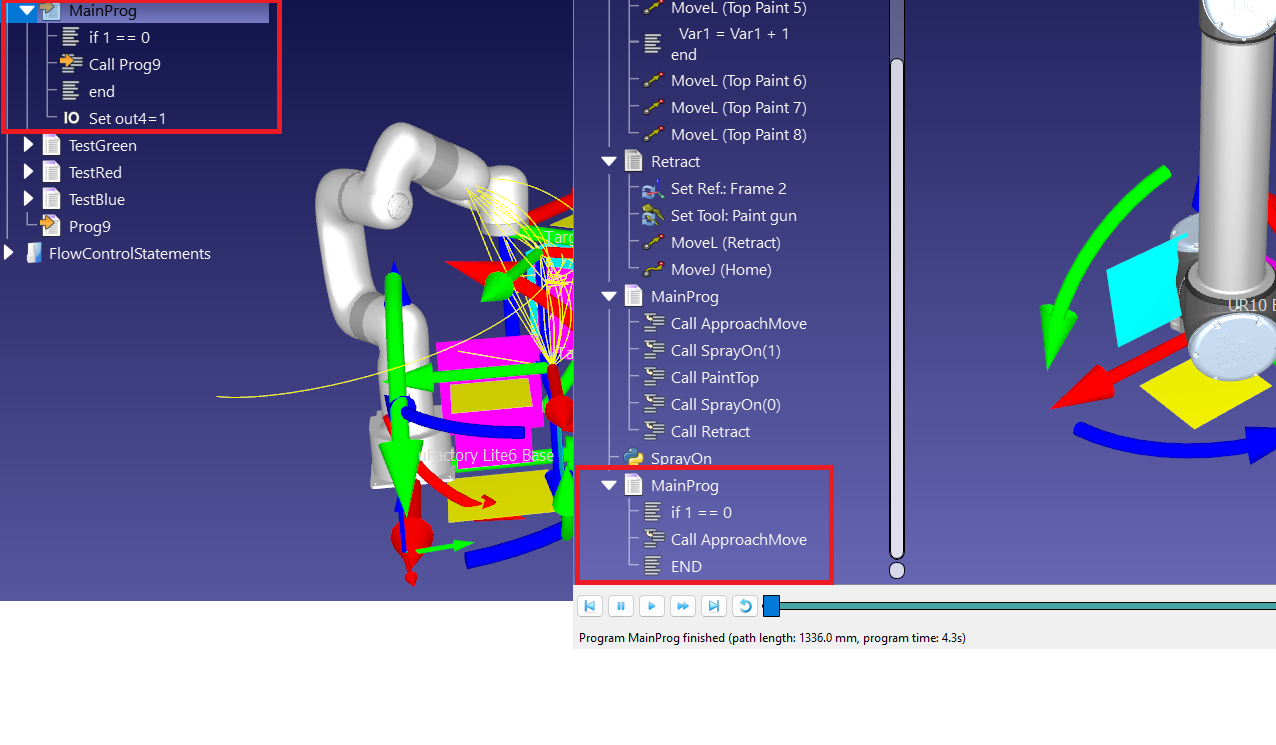

Hello, I'm trying to write an if statement, however as you can see (left) it runs even though if 1==0. I've tried with a station I found online (right) and it works as intended. I wonder if I am missing an extra step or something?

[Albert]

You should enable the option Enable flow control statements with your project to be able to simulate if and while statements with your programs generated using the UI:

1. Right click the root of your station

2. Select Station parameters

3. Check the option Enable flow control statements


[pixalate]

You should enable the option Enable flow control statements with your project to be able to simulate if and while statements with your programs generated using the UI:

1. Right click the root of your station

2. Select Station parameters

3. Check the option Enable flow control statements


It worked perfectly! Thank you.
