Incorrect tool orientation (TCP) for machining


i have problem with the orientation of the tool.

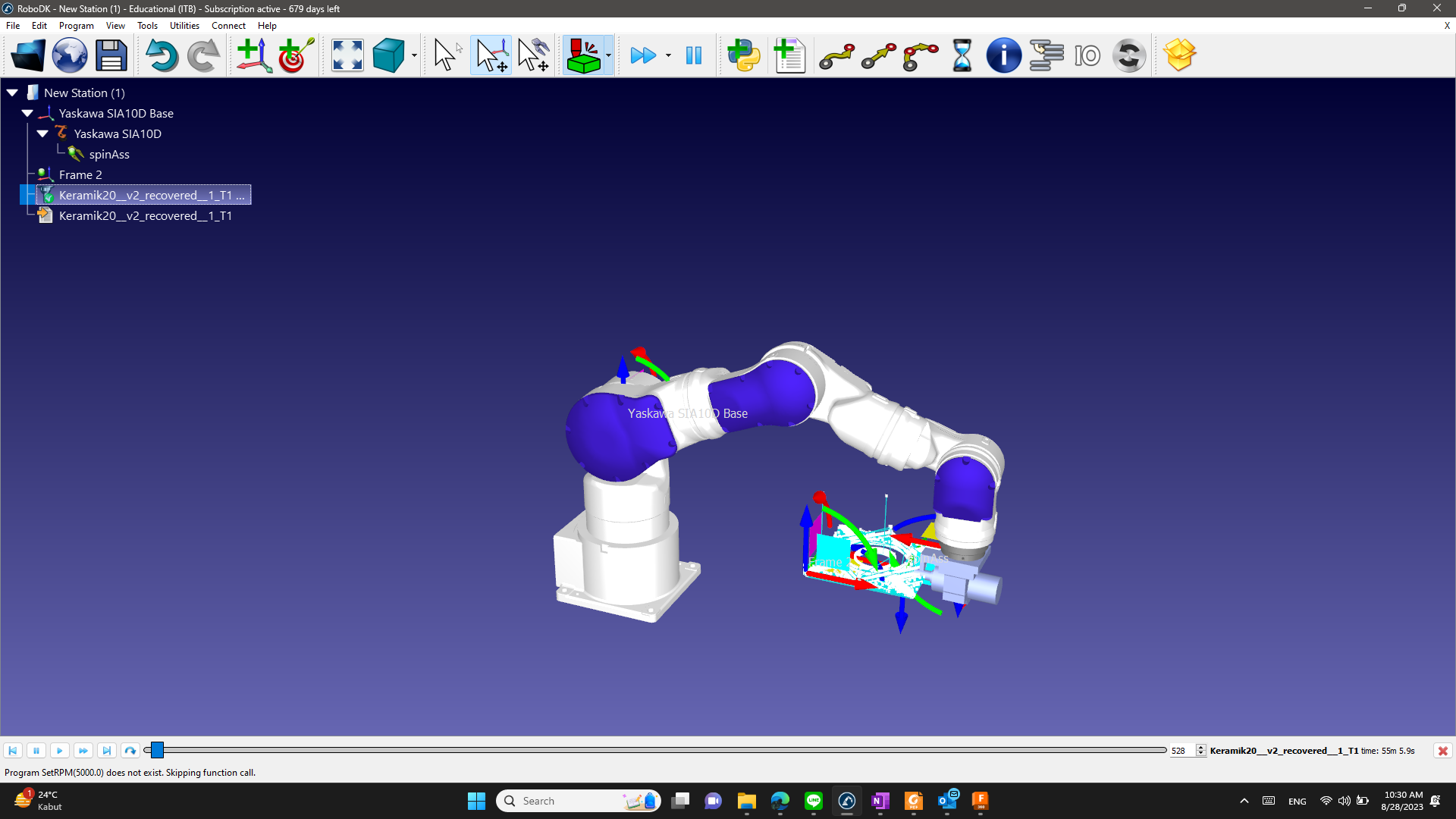

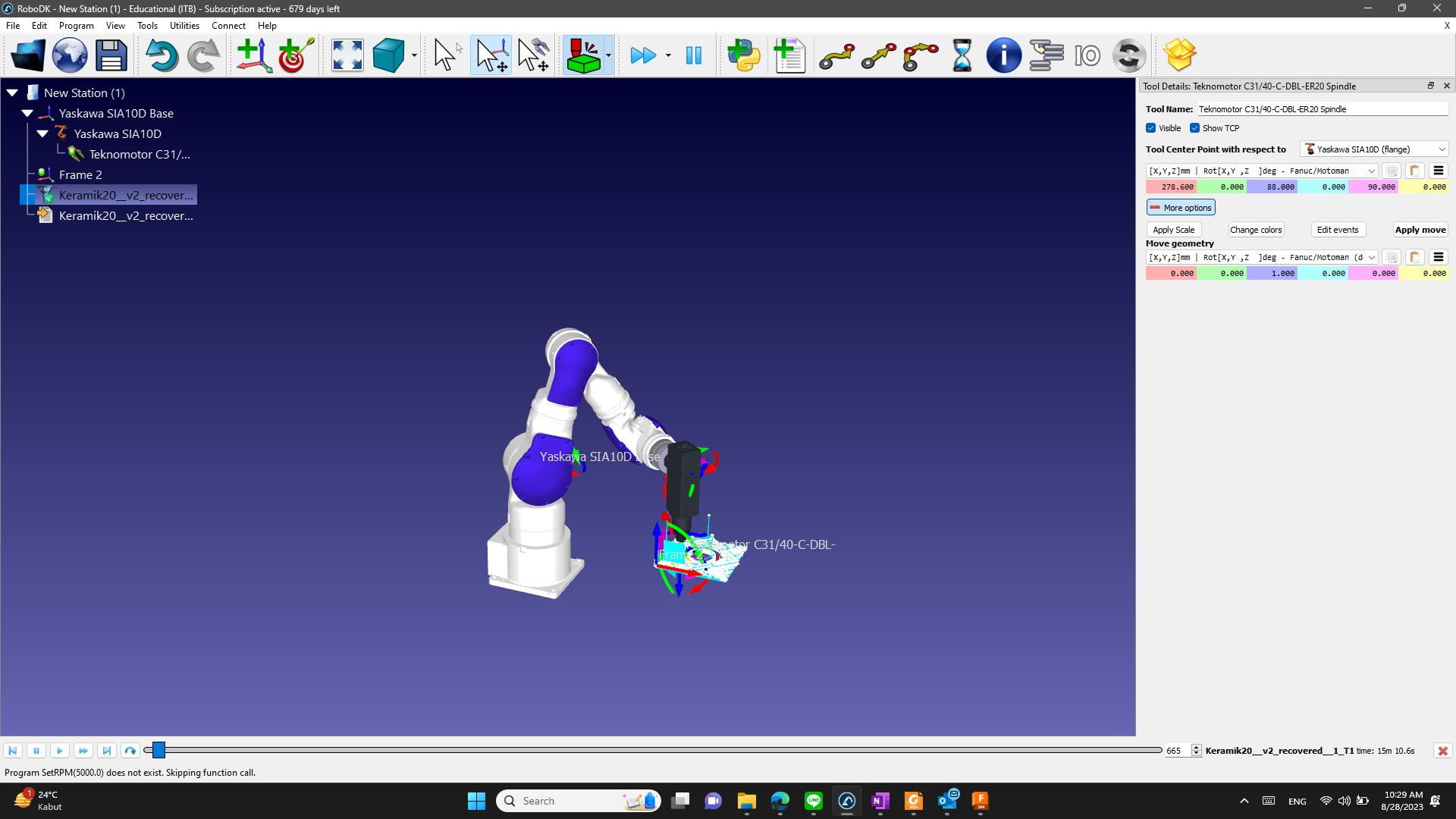

i was simulating motoman SIA 10D (DX100) with teknometer C31/40-C and i went fine. and i changed the tool to my spindle, but,i don't know why, the orientation of my spindle is wrong. i attach the pictures here. what should i do? do you have any idea?

Thank you

Attached Files Thumbnail(s)
Where did you get the machining program from?

Can you send us the APT or Gcode file you imported and the RoboDK project file?
Hello Albert,

i got the CAM from fusion. i made a CAM from fusion and after that i import it the object and the CAM to RoboDK.
i send the project and the APT here.

Attached Files
.rdk   robot_spindeTekno_alas.rdk (Size: 2.02 MB / Downloads: 16)
.apt   1001.apt (Size: 243.42 KB / Downloads: 18)

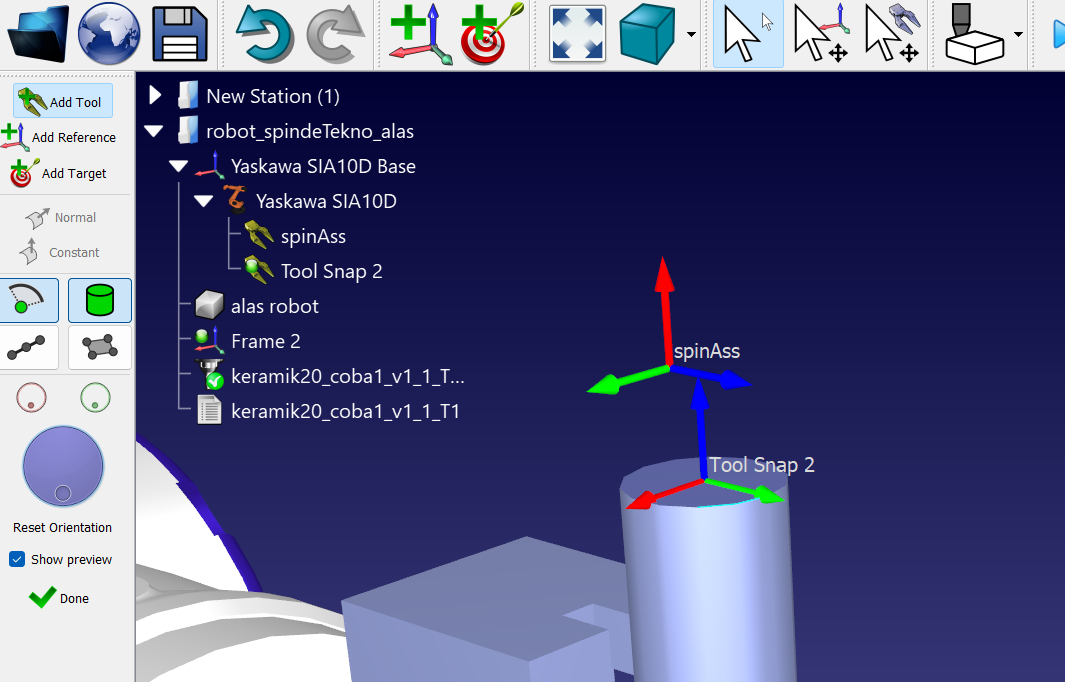

You should define the Z axis of your robot tool (TCP) pointing along the cutting axis of your spindle. You should be able to do this easily with the Program-Teach targets on surface feature in RoboDK. Make sure to select the Add Tool option.

See the attached image.

Attached Files
.rdk   robot_spindeTekno_alas-v2.rdk (Size: 2.02 MB / Downloads: 23)
