Joint target pose issue when additional axis is synchronized
#1
Hello,

I am simulating a SCARA robot (that I custom modelled) to which a rotary table is synchronized as an additional axis (1 axis).

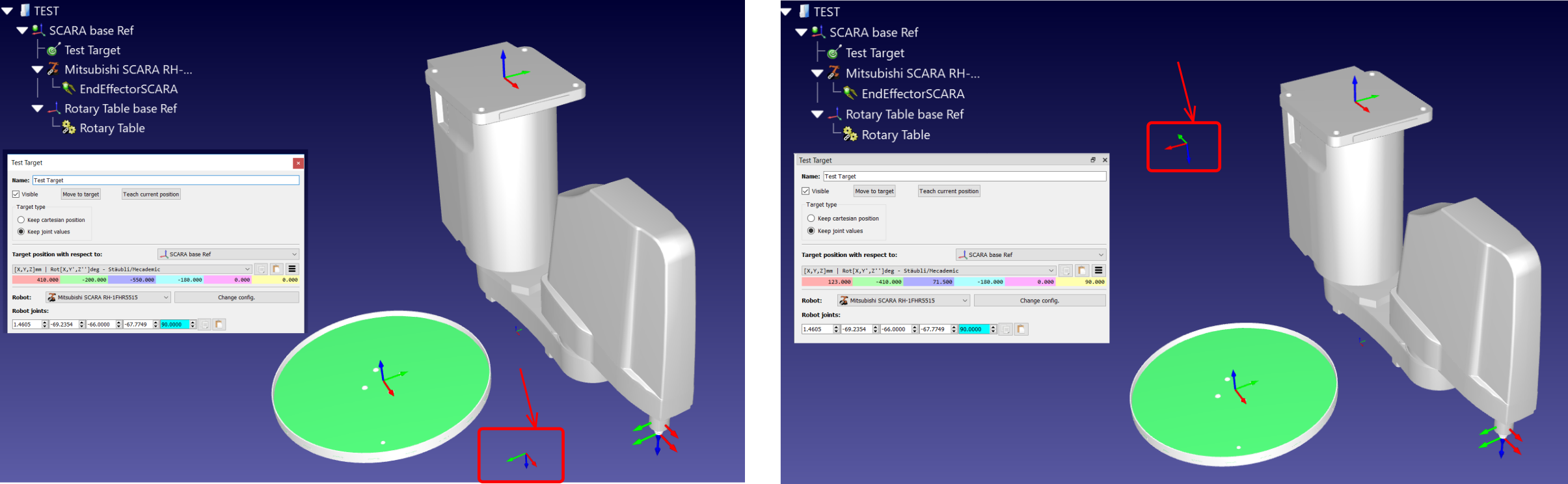

Whenever I set a Joint Target (nested into the robot base reference frame) and then I save the station, exit and re-open the station, the target pose appears to be changed. However, if I click on the target the robot goes to the target as I set it originally without displaying any error (but the target appears in an another position). If I do the same routine (save, exit and re-open) but without synchronizing the additional axis, this issue doesn’t occur and the target pose doesn’t change when I re-open the station. I attached an image showing the issue (left: target pose as I set it and saved it, right: target pose after exiting and re-opening the station).

Thanks for your help


Attached Files Thumbnail(s)

#2
Can you provide the RDK project file? We can help you better.
#3
Dear Mr. Albert,
I sent you a private message with the file.
Thanks,
Ivo
