KUKA: SetRPM() external Program call
#1
Hi Guys
Have a Question about Kuka- Programming.
Milling Robot Kuka Kr210 Krc2 ed.05, Software 5.6.6.
How i can make the Sub-Program for analog Out (0-10V) in KRC for RPM Milling Spindle.
RoboDK declared for Spindle RPM the external Program- Call „SetRPM()„
At Example, the Program- Call is „SetRPM(8000)“.


Question 1: How i can make a external Sub- Program in KRC „SetRPM()“ so that this recognizes the Variable (8000). This RPM can be 2000 or 18‘000.
Sub-Program SetRPM() i have decl. in the Config.dat.

Question 2: How can make the Analog Output Call? I think with SWITCH- and Case- Calls for different RPM or is there a Forula?

Thank you for Inputs and best Regards
Chris
#2
Hi Chris,

With the KUKA KRC controller you can create functions that allow you to pass variables by adding varname:IN in the function definition. You could also apply a formula to convert the input RPM to an analog value.

For example, from 0-5V using analog output 1, where 5V is 18000 RPM:
Code:
DEF SetRPM(rpm:IN)
REAL rpm
$ANOUT[1] = rpm*5/18000
END

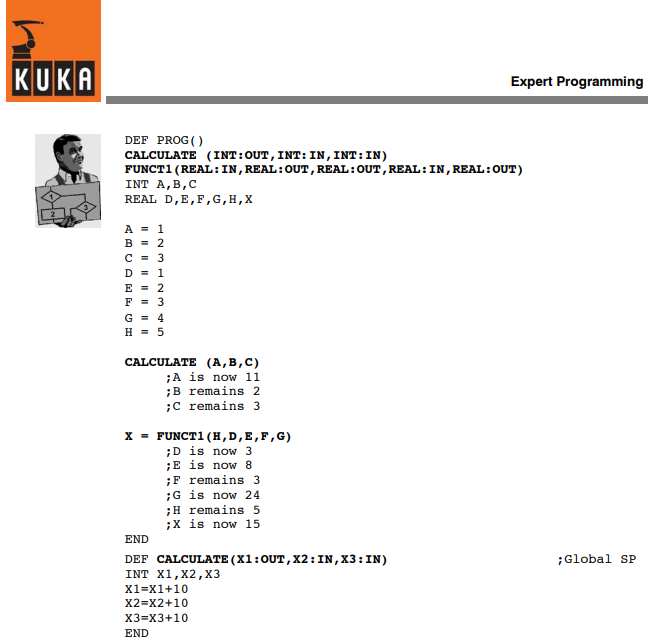

See attached screenshot from the KUKA Expert Programming manual.


Albert
#3
Thank you very much Albert, as always great!
Thats the Solution.

Have a nice Weekend,
Chris
