Mechanism synchronization

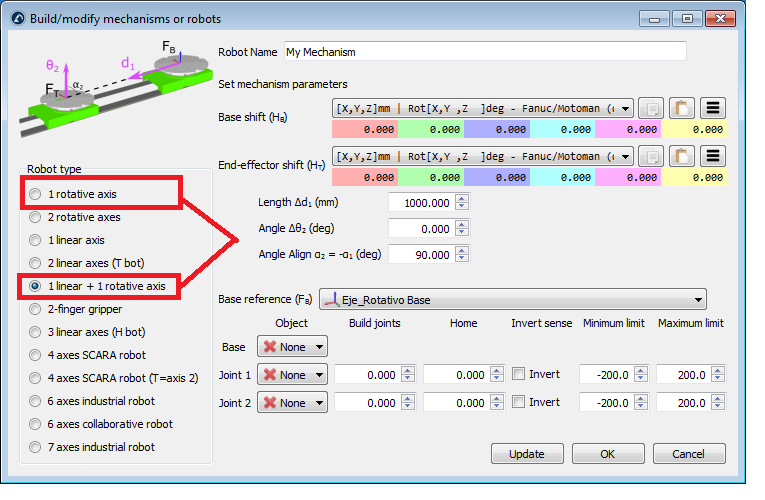

I am trying to synchronize a rotary axis with a mechanism. This mechanism is composed of a linear axis and a rotary axis, but RoboDk does not allow me to synchronize.

Could such synchronization be implemented?
Robot generation could also be implemented from a file containing the Denavit-Hartenberg parameters.

A greeting

Attached Files Thumbnail(s)
Synchronizing mechanisms is currently not supported. What exactly are you trying to do?

If you want to create a Cartesian robot you can use the 3-linear axes mechanism type.

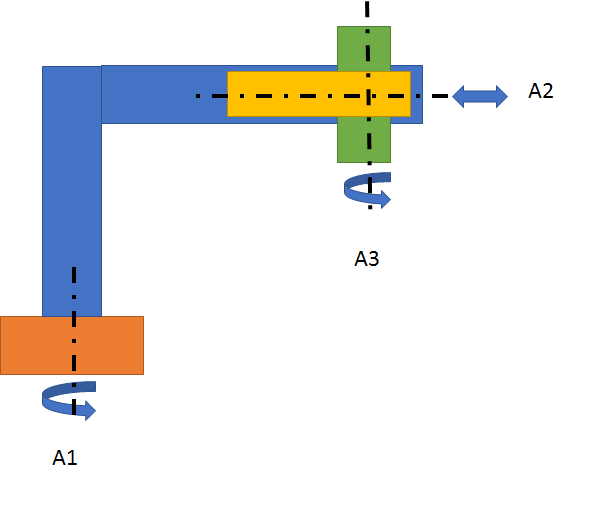

I am trying to create an RPR robot as shown in the image.

But I can't find any way to do it.

A greeting

Attached Files Thumbnail(s)
Unfortunately we don't support this mechanism out of the box. You could still build the kinematics using the RoboDK API.

This example may help you:
C:/RoboDK/Library/Example-09.a-Script-Model Robot DH-DHM Mirror Test - ABB IRB 120.rdk

I have managed to create the proposed RPR robot but when I try to move it in cartesian motion it does not let me. Also, when saving the points in cartesian tarject it tells me that the points are not reachable.

I attach the station with the saved points.

A greeting

Attached Files
.rdk   Garra.rdk (Size: 53.51 KB / Downloads: 255)
