Tool orientation from G code imported path

Image of User-SUMITKUMARRATHOR
SUMITKUMARRATHOR Offline
Junior Member
*
Posts: 1
Threads: 1
Joined: Jul 2024
Reputation: 0
#1
10-01-2024, 01:05 PM

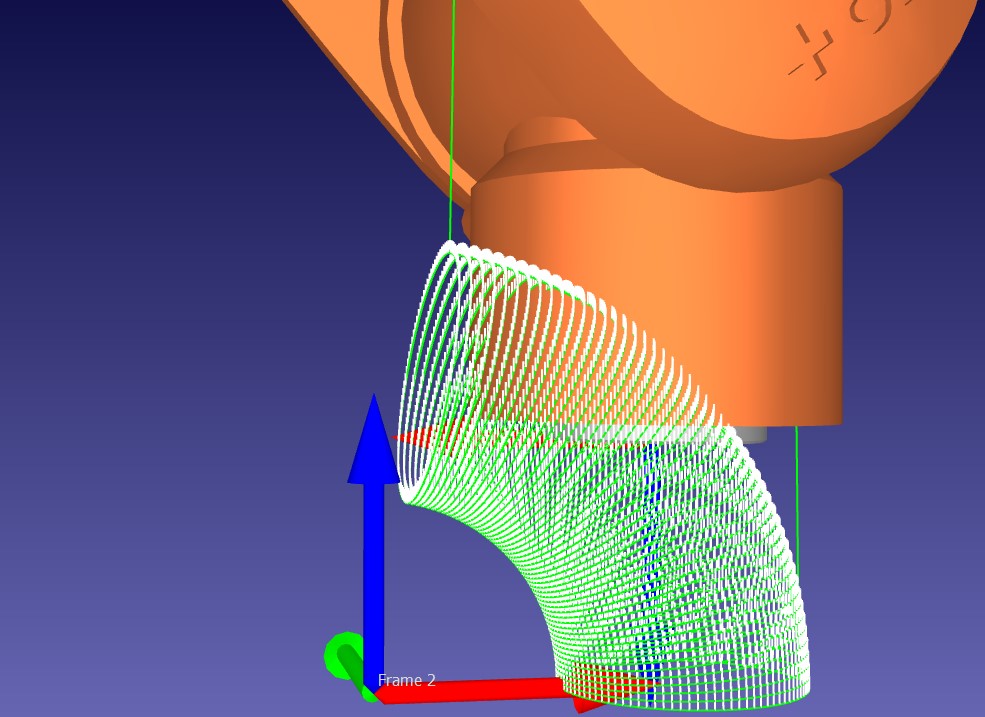

I have imported this path from a g code file. As shown in the figure, the orientation arrows are always vertical, but I want to change the tool orientation as per the path. Kindly help in this.


Attached Files Thumbnail(s)
Find
Reply
Image of User-Albert
Albert Offline
Moderator
*****
Posts: 3,984
Threads: 2
Joined: Apr 2018
Reputation: 184
#2
10-01-2024, 06:13 PM
Can you provide the G-code file you used? Do you have different formats to output it?
