Zig zag route correlation on complex surfaces

#1
Good morning,

On last webinar I asked to Jeremy how to correlate and generate paths on complex surfaces, for example, on complex parts of sheet metal generated with Inventor, see attached image.

Is it possible to do that? If affirmative how we do that. Because it generate paths but sometimes normal is inverted and the paths don't follow the same direction, sometimes they turn 90º.

Thank you in advance for your time.

Best regards,

Aleix
#2
Hi Aleix,

The attached image is missing. It would also be great if you can join the Inventor part so we can better help you.

Albert
#3
(02-17-2020, 02:17 PM)Albert Wrote: Hi Aleix,

The attached image is missing. It would also be great if you can join the Inventor part so we can better help you.

Albert
Hi Albert,
Sorry forgot to click add to message.

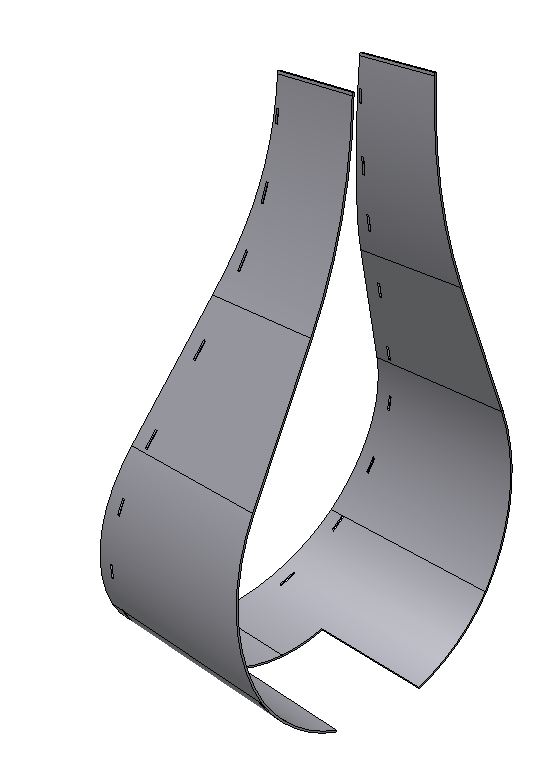

This is the image

You can find the inventor part attached ass well.
#4
Hi Aleix,

You forgot to attach the Inventor part.

Jeremy
#5
(02-18-2020, 04:50 PM)Jeremy Wrote: Hi Aleix,

You forgot to attach the Inventor part.

Jeremy
Please forgive me. I am a newbie on this forum and did not see that i could not attach iges. Now is attached
Thank you in advance


Attached Files
.zip   Superficie complexa.zip (Size: 39.77 KB / Downloads: 512)
