changing the view of the tool's geotry

#1
Hello !

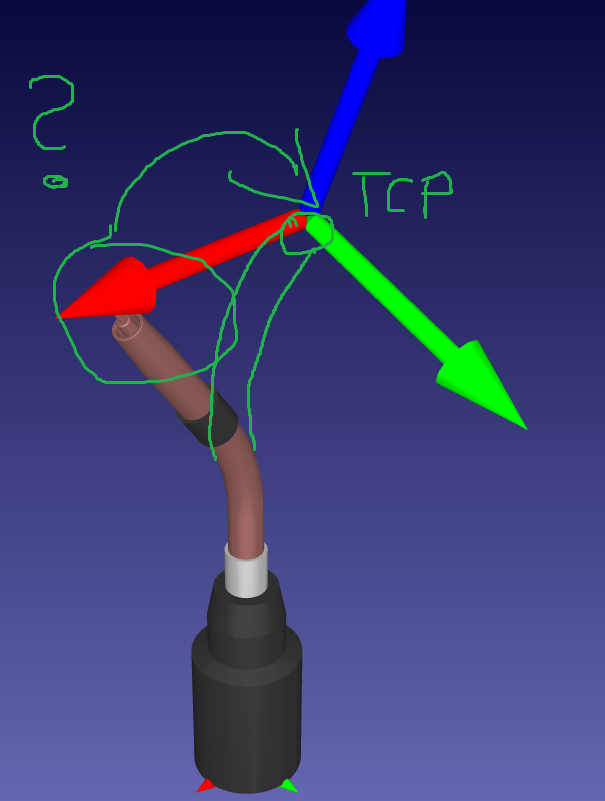

How to adjust (change) the appearance of the tool to the TCP point, such as in the attachment


Attached Files
.zip   Welding-Gun.zip (Size: 24.33 KB / Downloads: 216)
#2
The appearance or the position?

Not sure to understand what you are trying to achieve.
Jeremy
Find useful information about RoboDK and its features by visiting our Online Documentation and by watching tutorials on our Youtube Channel


#3
Graphical appearance of the tool so that the TCP point is at its end.
That it coincides with the graphics of the tool
end of tool = TCP (in view)
In RoboDK I want to adjust the look of the tool to my work
TCP = -0.44.51.01.443.88.89.01.22.31, -90.32


Attached Files Thumbnail(s)

#4
To change the position of the 3D model, double on the tool->More Options->Move geometry and Apply move once you are done.


Attached Files Image(s)

#5
I do not mean it
I want to change the drawing of the tool
extend to get to TCP
Modify the drawing of Welding-Gun.tool
With what I can edit it
#6
Hi,

You can Scale/Transform any object in RoboDK with the ScaleXYZ tool. Just go to Tools -> Run Script -> ScaleXYZ and select the object you want to modify.

If you need to do a more complex modification you can right click in the object and save as *.stl or *.sld and edit in your favorite 3D CAD software. After you modify the object to your liking, you can load the part in RoboDK.
#7
Ok thank you for help
FRONUS welding tool models available?
#8
(12-21-2021, 07:58 PM)robo1973 Wrote: Ok thank you for help
FRONUS welding tool models available?

Sorry, we do not currently have any Fronius Welding tool available in our library. You can check our library here:
https://robodk.com/library

If you need an exact model from a specific brand, you should ask the manufacturer if they have 3D models available.
#9
You can then follow these 2 videos to learn how to create your own custom tool:
https://www.youtube.com/watch?v=FltOFBCzx-w
https://www.youtube.com/watch?v=cYAeZAp7kRA

Jeremy
Find useful information about RoboDK and its features by visiting our Online Documentation and by watching tutorials on our Youtube Channel


#10
Thank you for your help, I will test
I wish you a merry Christmas world
