how to do a rotation with a single joint by a python program ?

#1
Hello,

I have a problem with a python program, when I want to do a rotation with a UR3e robot the coordinates in x,y,z work, the coordinates in rx,ry,rz work but I only want a rotation on a single joint.

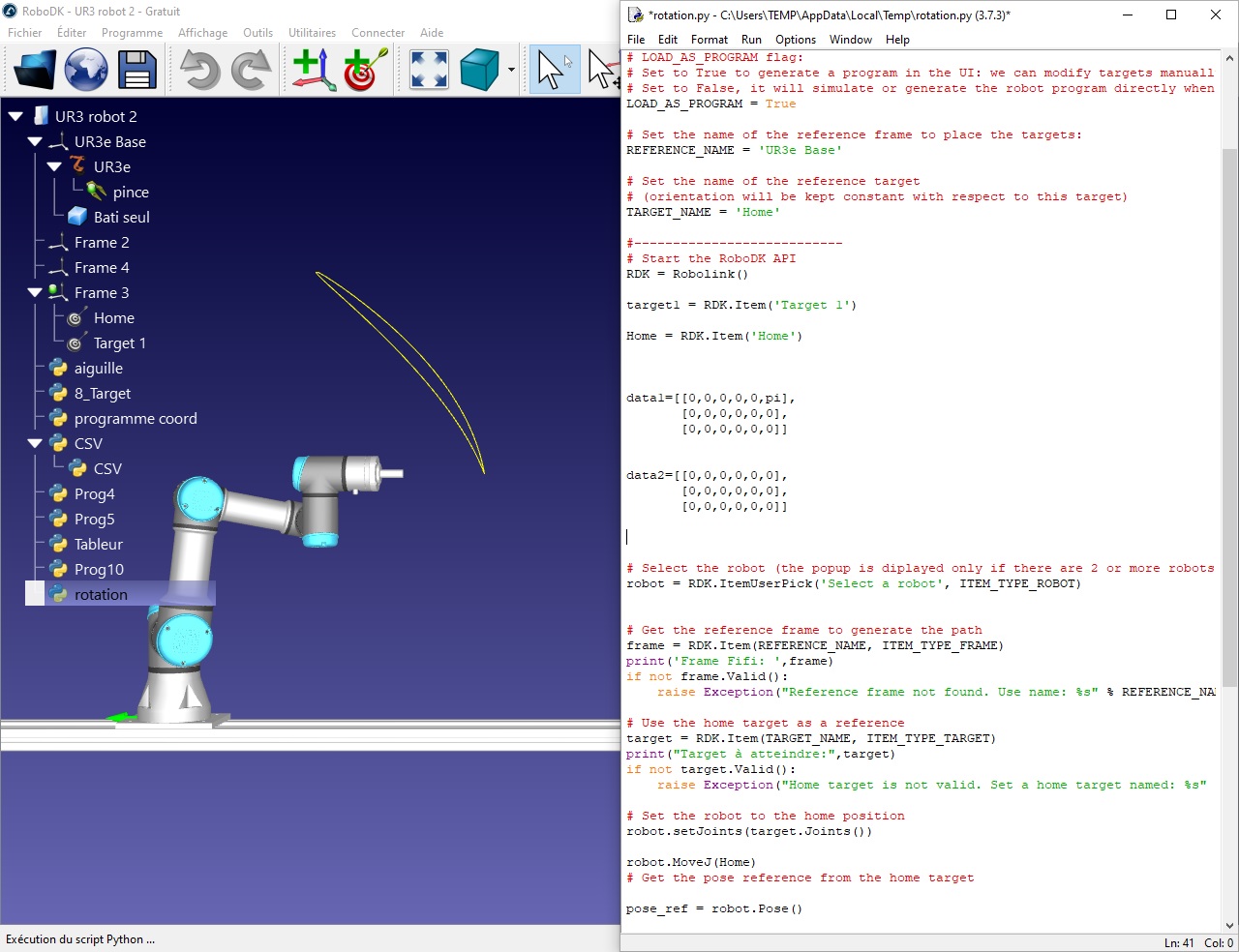

I added a screenshot and the python program in attachments.

Thank you for reading

Professor Relmy


Attached Files Thumbnail(s)


.py   python_rotation.py (Size: 2.16 KB / Downloads: 144)
#2
If you want to rotate a joint you can simply provide new joint values.

For example, if you want to move joint 6 by 180 deg:
Code:
joints = robot.Joints()
joints[5] = joints[5] + 180
robot.MoveJ(joints)
