3D printing-robot collision detected error

#1
Hi,

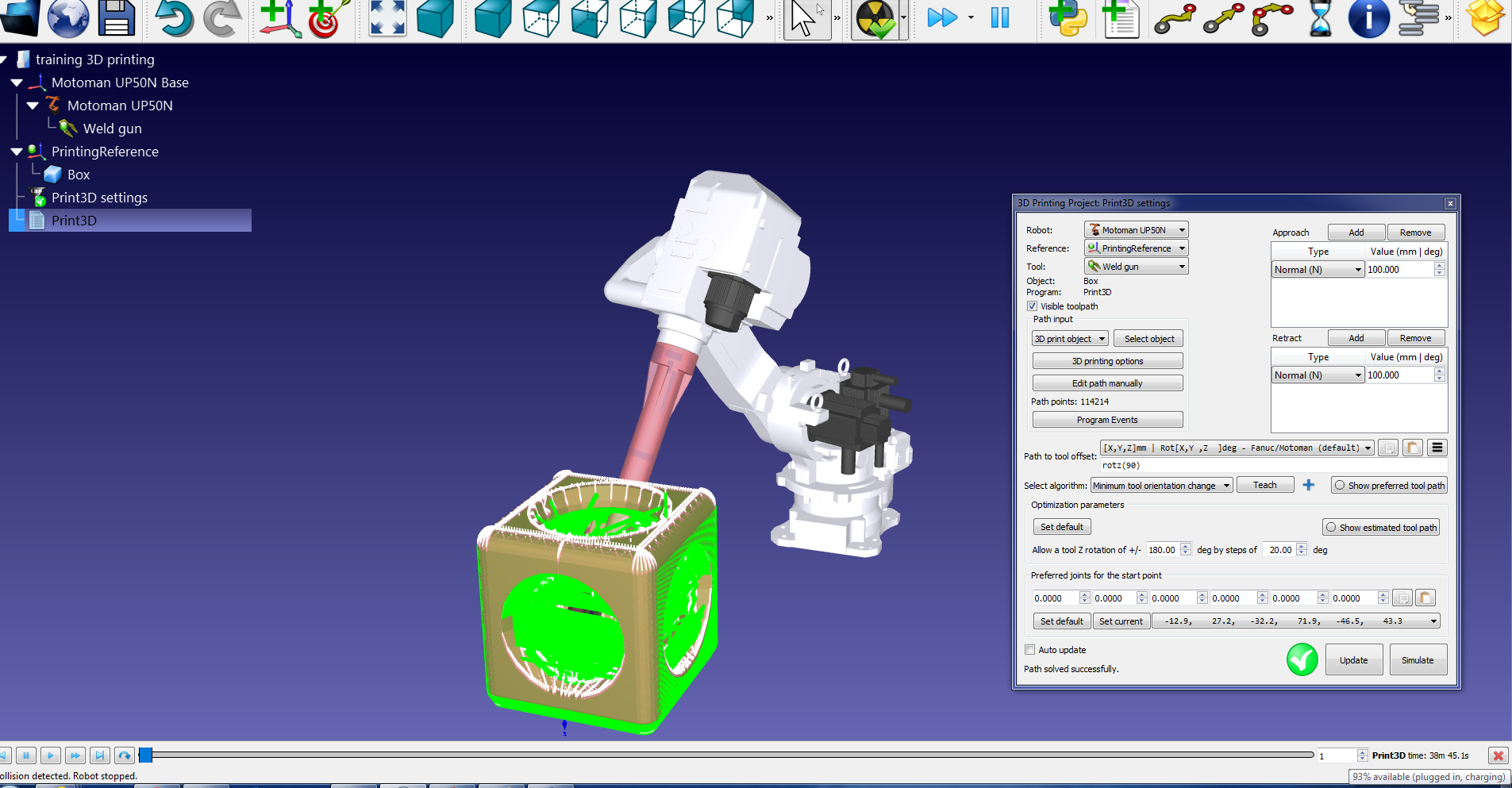

I am new to ROBODK and I just try to follow and practice the video on "3D printing with a robot". When I want to run the 3D printing simulation, the simulation doesn't run and it says the robot collision detected. How can I solve this issue?

Best regards,

#2
You should stop collision checking by selecting:
  • Tools-Check collisions
You can also define your collision map to narrow collision checking.

More information here:
https://robodk.com/doc/en/Collision-Avoi...Collisions
#3
(05-12-2020, 10:58 AM)Albert Wrote: You should stop collision checking by selecting:
  • Tools-Check collisions
You can also define your collision map to narrow collision checking.

More information here:
https://robodk.com/doc/en/Collision-Avoi...Collisions

Thank you very much for the info.

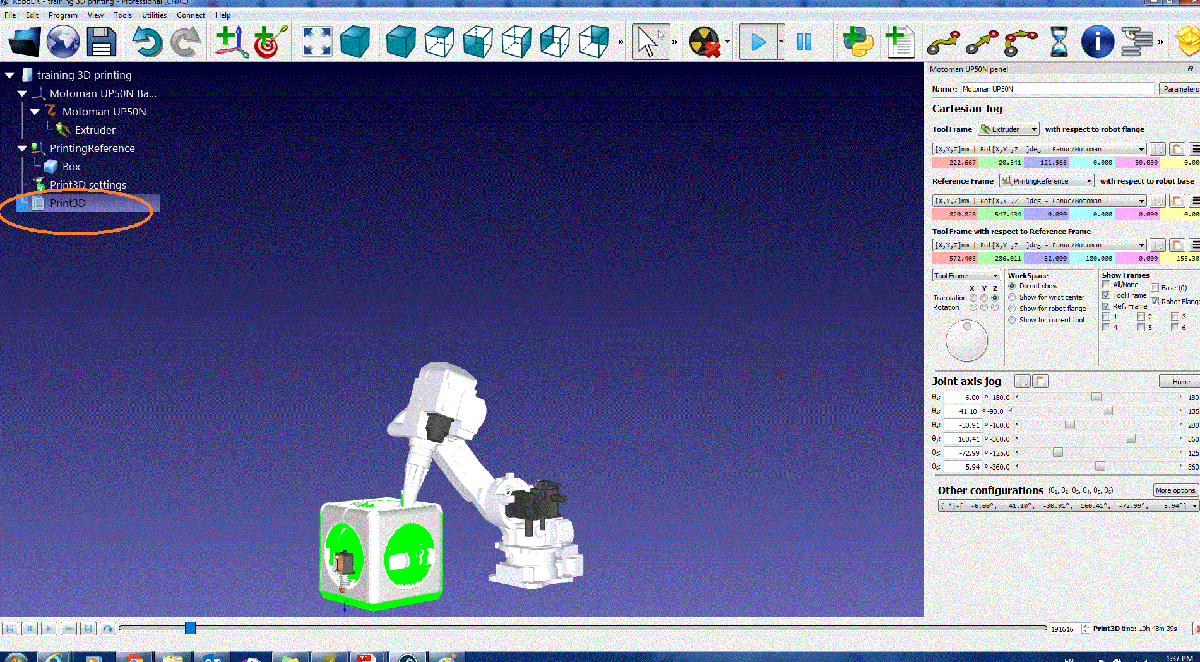

I have another issue in this step. In the tutorial, after slicing the object and updating the 3D print parameter, by default, RoboDK create a program called Extruder . In my case I can run the simulation but there is no program events created. am I missing something?


Attached Files Thumbnail(s)

#4
You should right click your program and select "Show Instructions".
