Curve Follow Project + Axis Optimisation + Linear Track Optimisation

#1
Hello guys,

is there any good tutorial regarding CFM and Axis Optimisation?

I have a case that, whatever Preset from axis optimisation I use, the robot makes always the same thing:

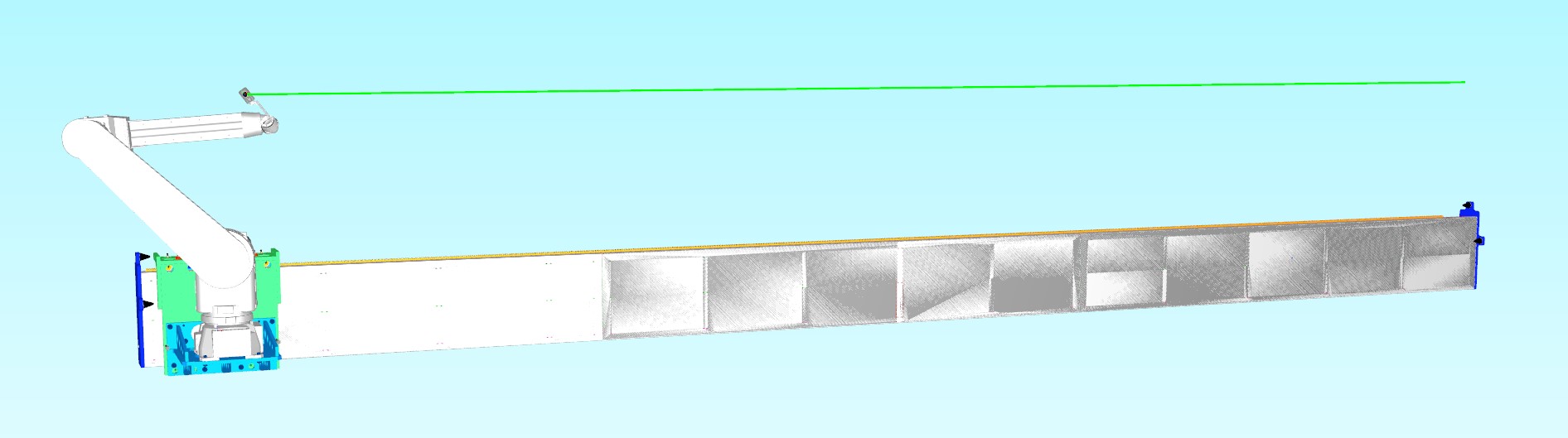

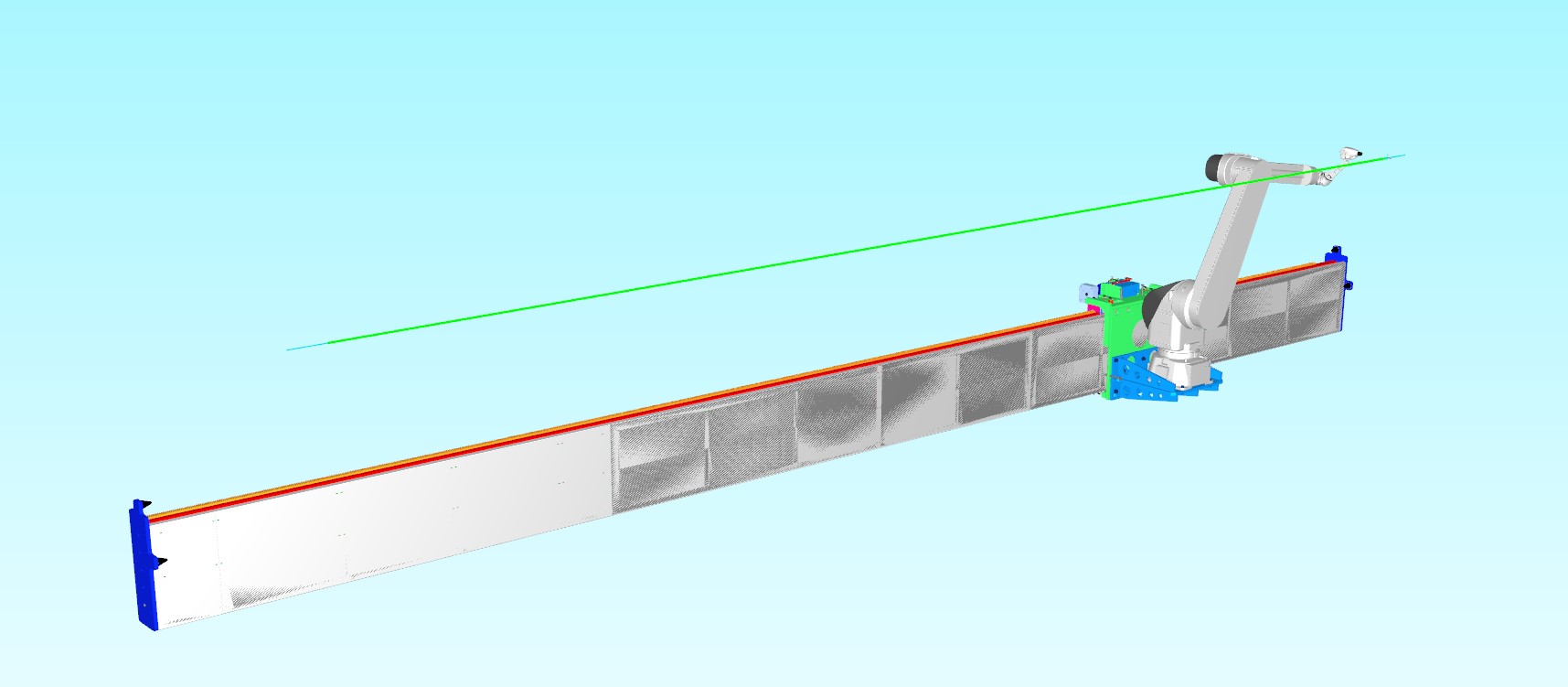

Starts and ends are in the attachment

Because of the application I use, it is not good to change orientation.

Thanks in advance!
Kind regards,
Tom


Attached Files Thumbnail(s)

#2
You can find some information about how to deal with external axes here:
https://robodk.com/doc/en/General.html#AxesOptimization

If you can share the RDK project and describe what you are trying to do we can help you better.
#3
OK, thanks!
#4
Ok, so here is my cell.

I have a curve "Test1 Filtered New New New New" and 1 CFP.

I am doing painting so I dont want the gun to rotate around TCP Z axis. IMHO, that should mean for CFP: Minimum tool orientation change and "Allow a tool Z rotation" = 0.

However, if I dont let him allow at least 10 Degs to rotate, he wont be able to successfully calculate the path. I wouldnt be a big issue but I see on the path that is going from up to down that the gun is rotated around 50Degs from the pose I wanted him.

Can you tell me what am I doing wrong?

Thank you very much!
Kind regards,
Tom


Attached Files
.rdk   New Station (7_13)forRDK.rdk (Size: 22.71 MB / Downloads: 194)
#5
Can you please take a look at the cell?

MANY THANKS!! :)
#6
I have looked into your station.
The Fanuc P250i has non-standard kinematics.
You can limit the maximum allowable range of rotation around Z:


#7
Hello Sergei,

thank you for your reply.

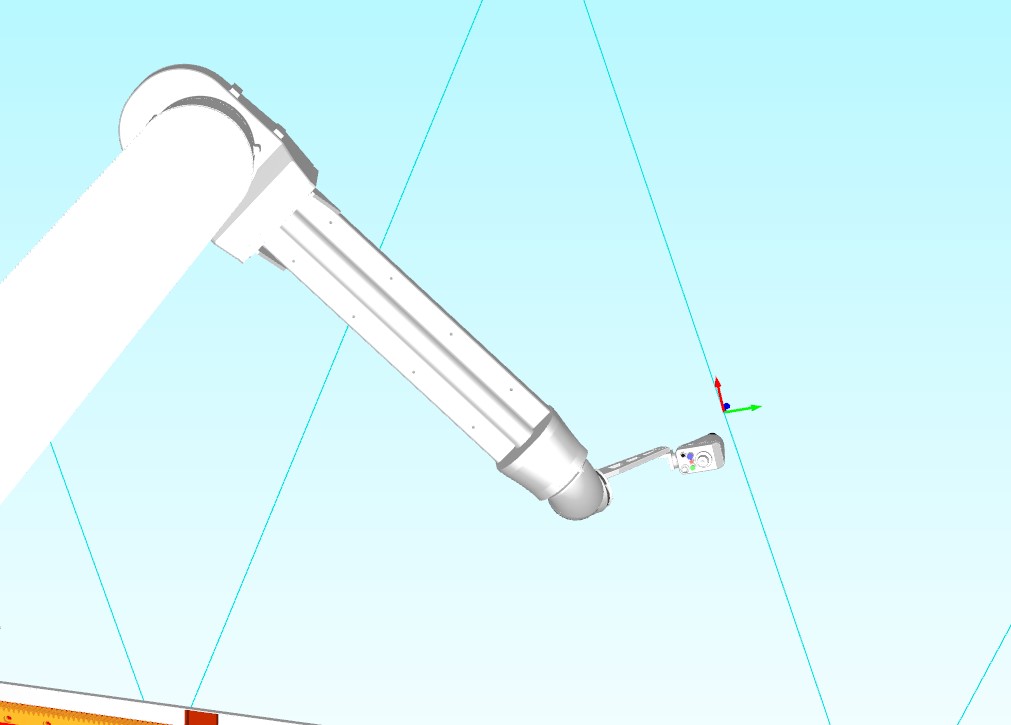

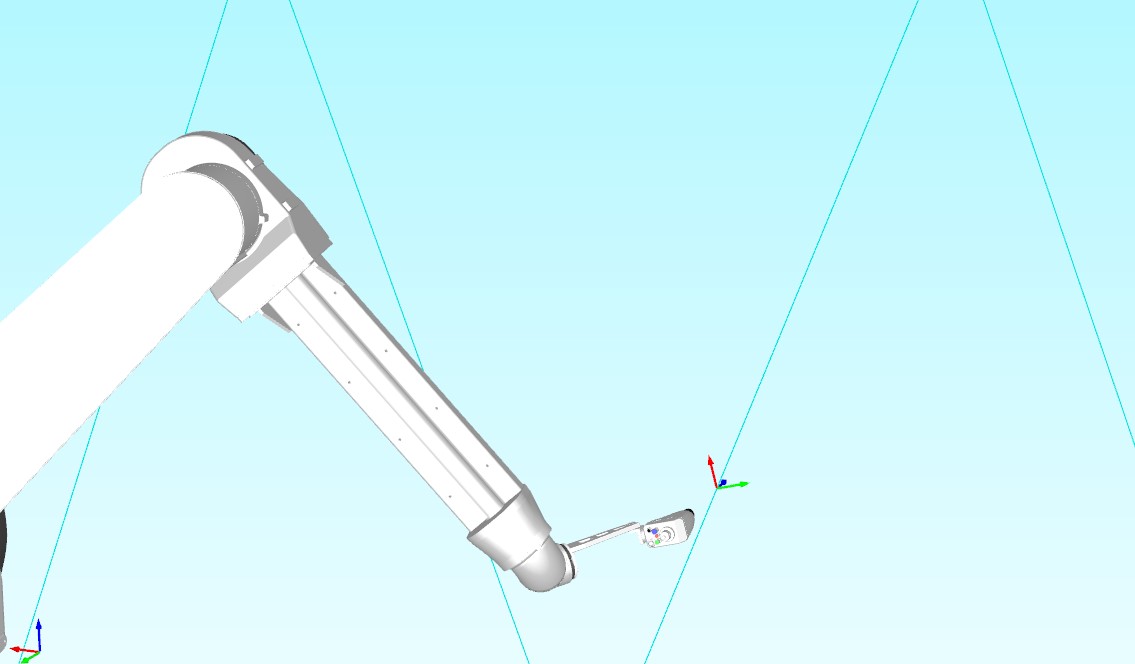

The solution you suggested is unfortunately not working. As you can see in the attached 2 photos, the X arrow from the TCP is not following the path. Any suggestions on this issue?


Attached Files Thumbnail(s)

#8
OK, if I understand correctly - you want to align the tool in the corners of this zig-zag path.

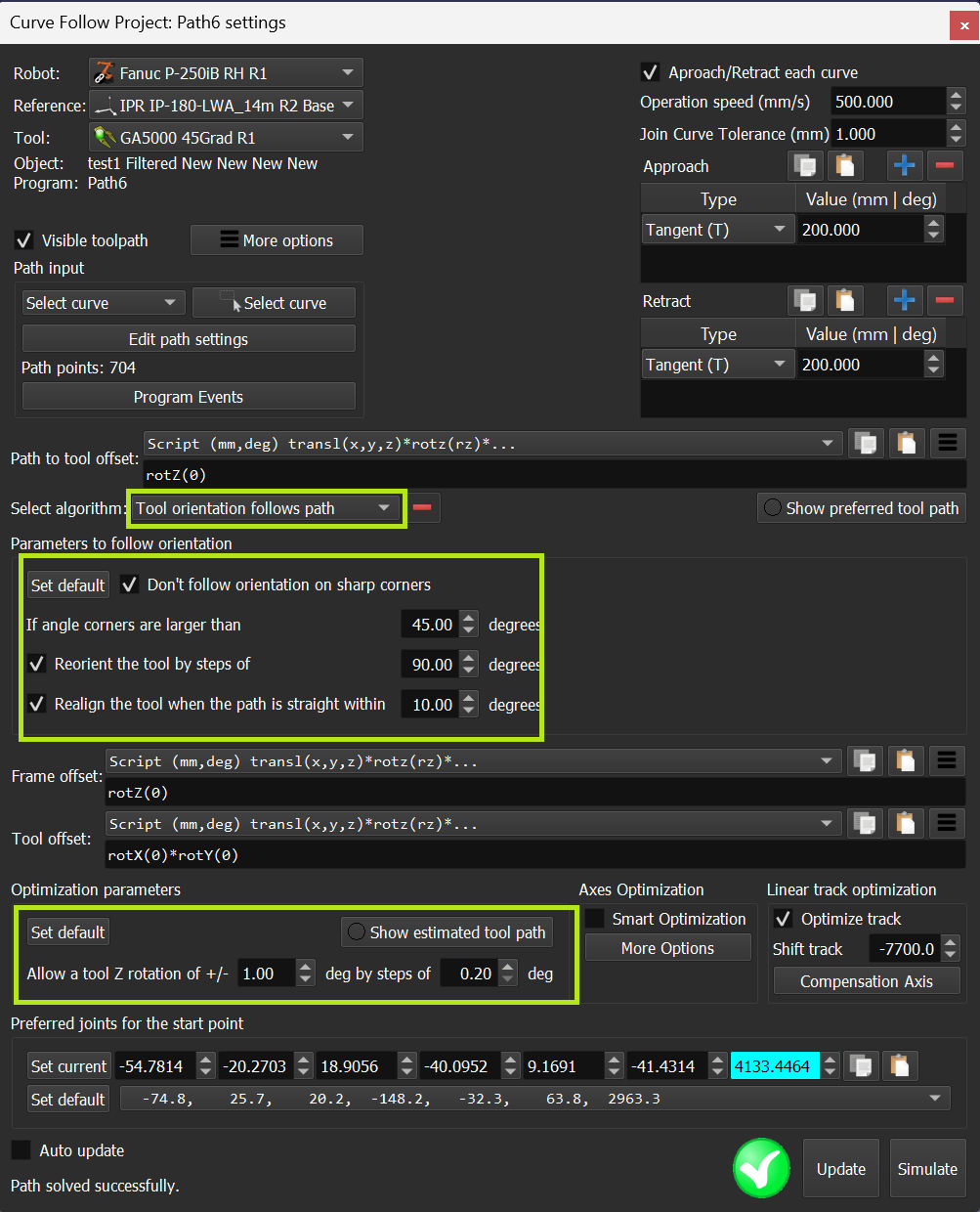

Please, try the following settings:



In addition, as the rail limit affects the robot's posture at the end of the track, additional points need to be added to the last part of the path:



If you want strictly follow the path with TCP - I'm not sure that it's possible for this station.

I attached a modified station.


Attached Files
.rdk   New Station (7_13)forRDK_md.rdk (Size: 22.81 MB / Downloads: 162)
