Curved conveyor mechanism

DKeretic · 09-15-2020, 09:45 AM

Hello everyone,

I need help. I want to make mechanism of a 90 deegres curved conveyor. Is it possible to make something like that in RoboDK? I would be very grateful if someone would provide an example.

Thank You!

**Albert** · 09-15-2020, 12:12 PM

This is currently not possible unless you use the RoboDK API at this moment.

@Phillip may be able to help you model your conveyor, could you provide us with the 3D model?

**Olivier** · (This post was last modified: 09-15-2020, 08:50 PM by Olivier.)

Hello DKeretic,

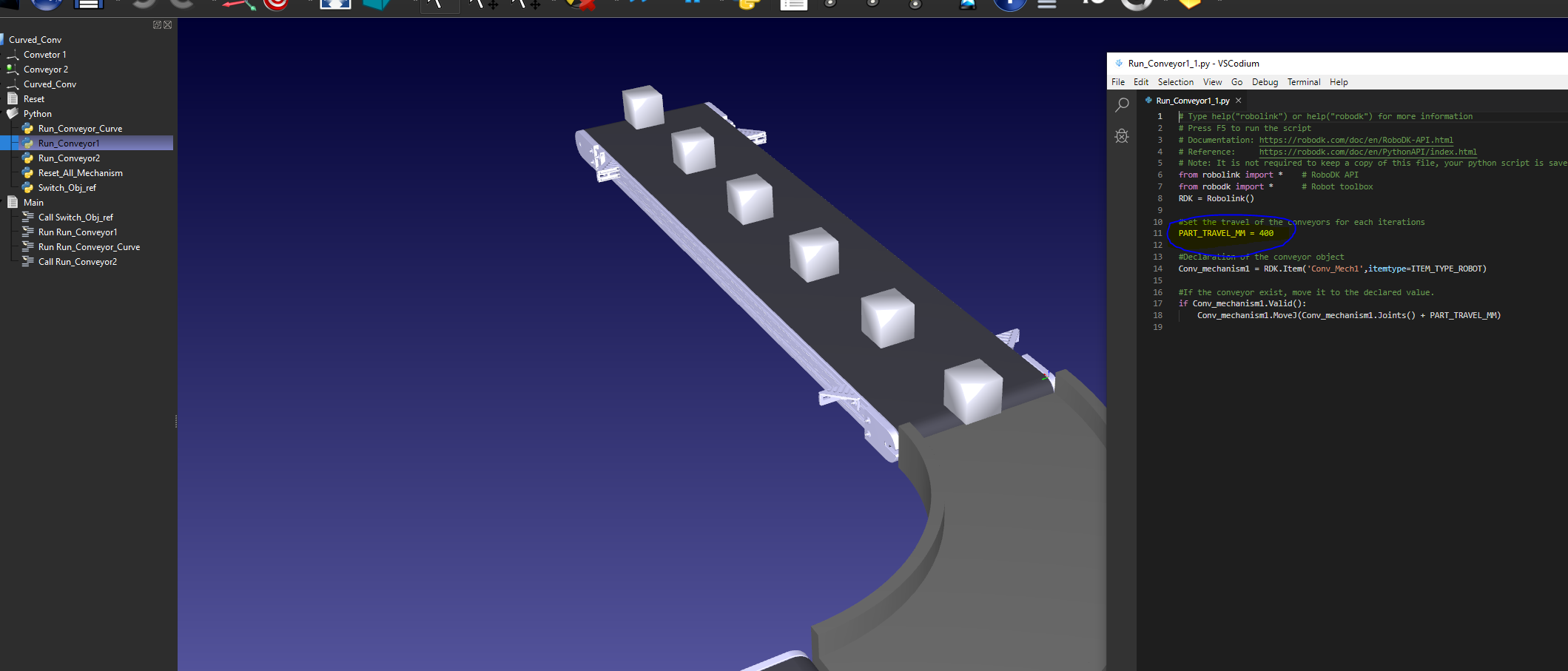

Here is a example on how you can run a curved conveyor using a bit of python. Lemme know if you have any questions.

Olivier

DKeretic

(09-15-2020, 12:12 PM)Albert Wrote: This is currently not possible unless you use the RoboDK API at this moment.

@Phillip may be able to help you model your conveyor, could you provide us with the 3D model?

Here it is. Thank You.

(09-15-2020, 07:58 PM)Olivier Wrote: Hello DKeretic,

Here is a example on how you can run a curved conveyor using a bit of python. Lemme know if you have any questions.

Olivier

I'm not able to run the program. When I click run nothing happens.

**Jeremy** · 09-16-2020, 11:29 AM

Hi DKeretic,

I just try the conveyor Oliver sent you and it works fine on my end.

You need to run the "Main".
Also, make sure that your Python is set properly. ("Tools"->"Options"->"Python"->"Python interpreter"->"Select").
Also, make sure that you are using the latest version of RoboDK. ("Help"->"Check for updates")

Jeremy

DKeretic · 09-19-2020, 08:40 PM

One more question from me. Is it possible to add curve path in RoboDK and then make step file object follow that path?

**Olivier** · 09-21-2020, 01:47 PM

Hi DKeretic,

One way to do it is to create a 6 axis mechanism and make it follow the curve with the object. This solution only work with one object at the time, unless you create multiple 6 axis mechanisms.

Olivier

ryanc259 · 07-19-2021, 11:24 AM

@Olivier, do you know if it is possible to stop the object for at a predetermined location along path? E.g. I would like to stop an object at a position along a curved conveyor so a cobot can attach parts to it, before continuing along the path when assembly is complete.

**Olivier** · 07-20-2021, 06:46 PM

Hi ryan259,

Did you check out my Curved_Conv.rdk example?

You can change travel value in the python script to fit the position you need, just be sure to change the values in all 3 Run_Conveyor_xx scripts.

Olivier
