Imported curves not the same orientation as drawn in SW
#1
I apologize for the earlier double post please remove the extra one if possible.

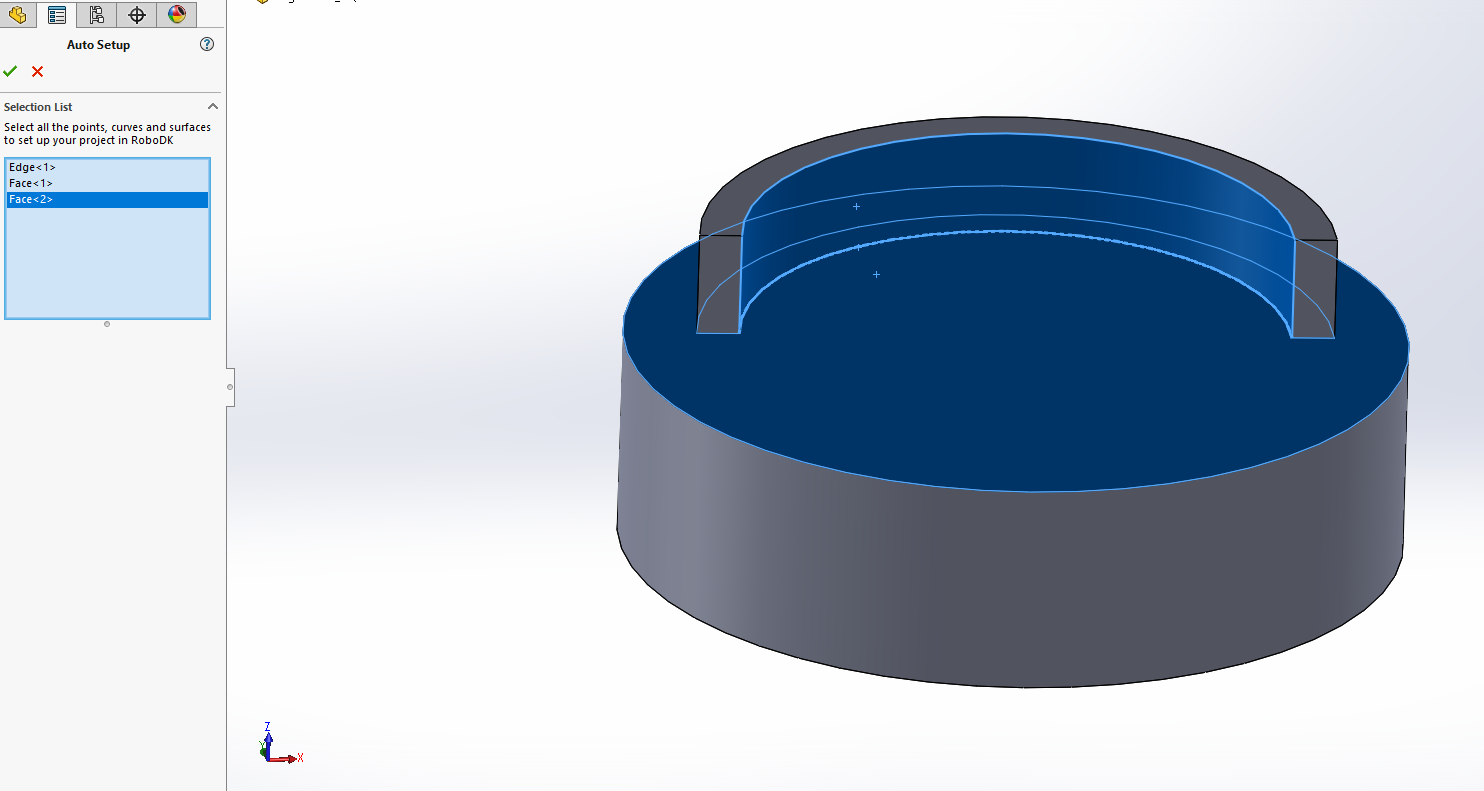

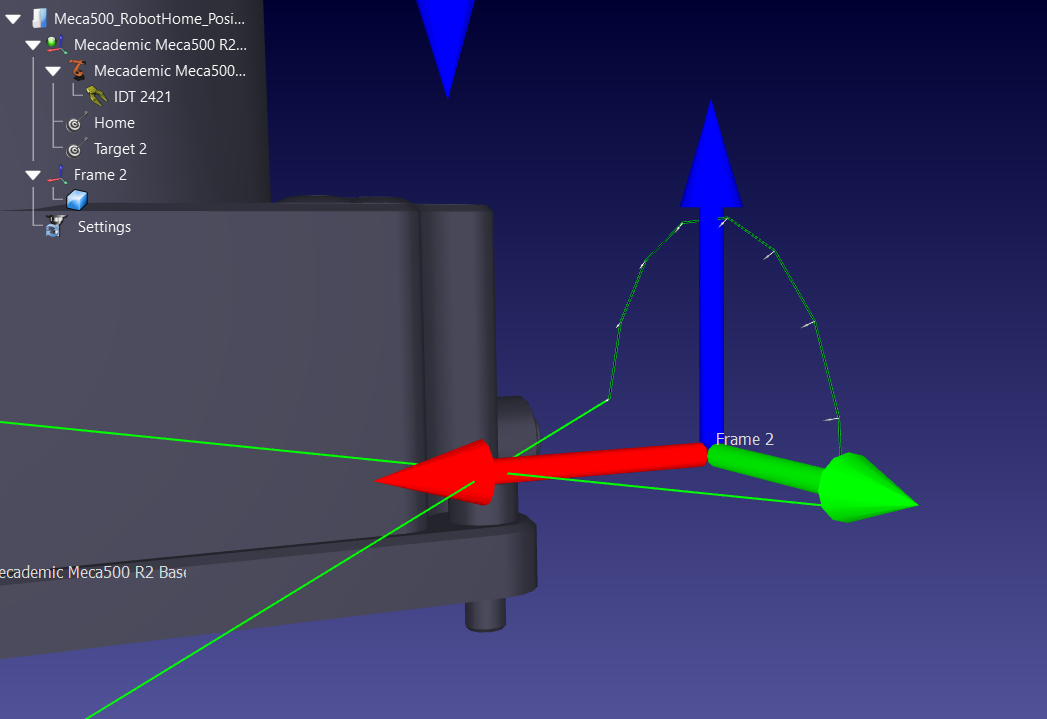

When I import my curves from solid works and then nest the curves into the frame, the curves are never normal to the Z axis in RoboDK even though they are normal to the z axis in SW.
How can I fix this.
Thank you
Mark


Attached Files Thumbnail(s)

#2
Hi mmcrea_BAT,

To adjust this, open the settings in the RoboDK plugin and select Map Z axis towards the top.

Olivier
