I'm doing research on direct ink writing and we're using a Kuka robot to hold a fluid dispenser to do so. My part on the research team is creating a novel toolpath approach that will better support the challenges faced with direct ink writing. As such I've created my own custom CAM software. Currently I will create various complex surfaces and objects in a CAD software, export an STL file and my CAM software analyzes it and outputs various data along with a Gcode. I am able to get my Gcode into the software and have the fluid dispenser follow my toolpath but it's ignoring the ABC angles in the GCode. Also, I need the capability to modulate the fluid flow for the fluid dispenser. Currently my CAM software is outputting S commands for fluid dispensing rate and F commands for toolhead movement speed. A sample output of the CAM software is below for an older file.
; File: Complex_Surface.gcode
G21 ; mm units
G90 ; absolute positioning
G0 Z5.0000
G0 X-63.3600 Y-70.0820 A4.9575 B0.0000 C0.0000
S0.0
G0 Z10.4105
M3
G5.2 P1 ; Begin NURBS curve
X-63.3600 Y-70.0820 Z10.4105 A4.9575 B0.0000 C0.0000 S0.0 F1200.0
X-63.3600 Y-69.3850 Z10.3644 A1.4371 B0.0000 C0.0000 S53.0 F1200.0
X-63.3600 Y-67.9910 Z10.4614 A-8.3558 B0.0000 C0.0000 S29.7 F1200.0
X-63.3600 Y-67.2941 Z10.5868 A-11.8905 B0.0000 C0.0000 S22.7 F1200.0

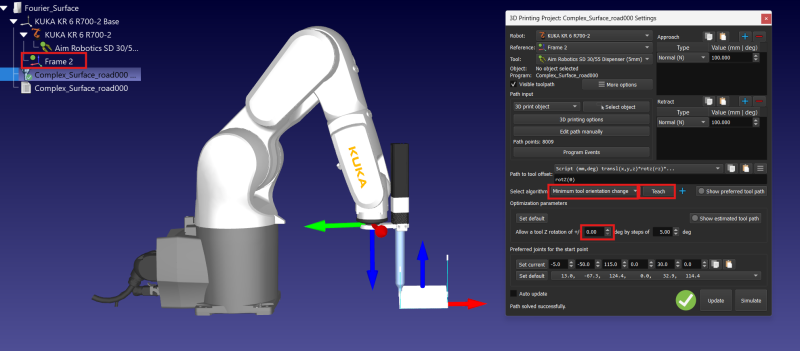

As you can see all of the toolhead tilt for now is done in the A direction (about the X-axis). Currently this is being ignored in RoboDK. I can change the output of the CAM software if needed, I just need some direction. I've read through and watched several videos on the topic, I know I'm likely missing and older post and I apologize if I've missed it.
; File: Complex_Surface.gcode
G21 ; mm units
G90 ; absolute positioning
G0 Z5.0000
G0 X-63.3600 Y-70.0820 A4.9575 B0.0000 C0.0000
S0.0
G0 Z10.4105
M3
G5.2 P1 ; Begin NURBS curve
X-63.3600 Y-70.0820 Z10.4105 A4.9575 B0.0000 C0.0000 S0.0 F1200.0
X-63.3600 Y-69.3850 Z10.3644 A1.4371 B0.0000 C0.0000 S53.0 F1200.0
X-63.3600 Y-67.9910 Z10.4614 A-8.3558 B0.0000 C0.0000 S29.7 F1200.0
X-63.3600 Y-67.2941 Z10.5868 A-11.8905 B0.0000 C0.0000 S22.7 F1200.0

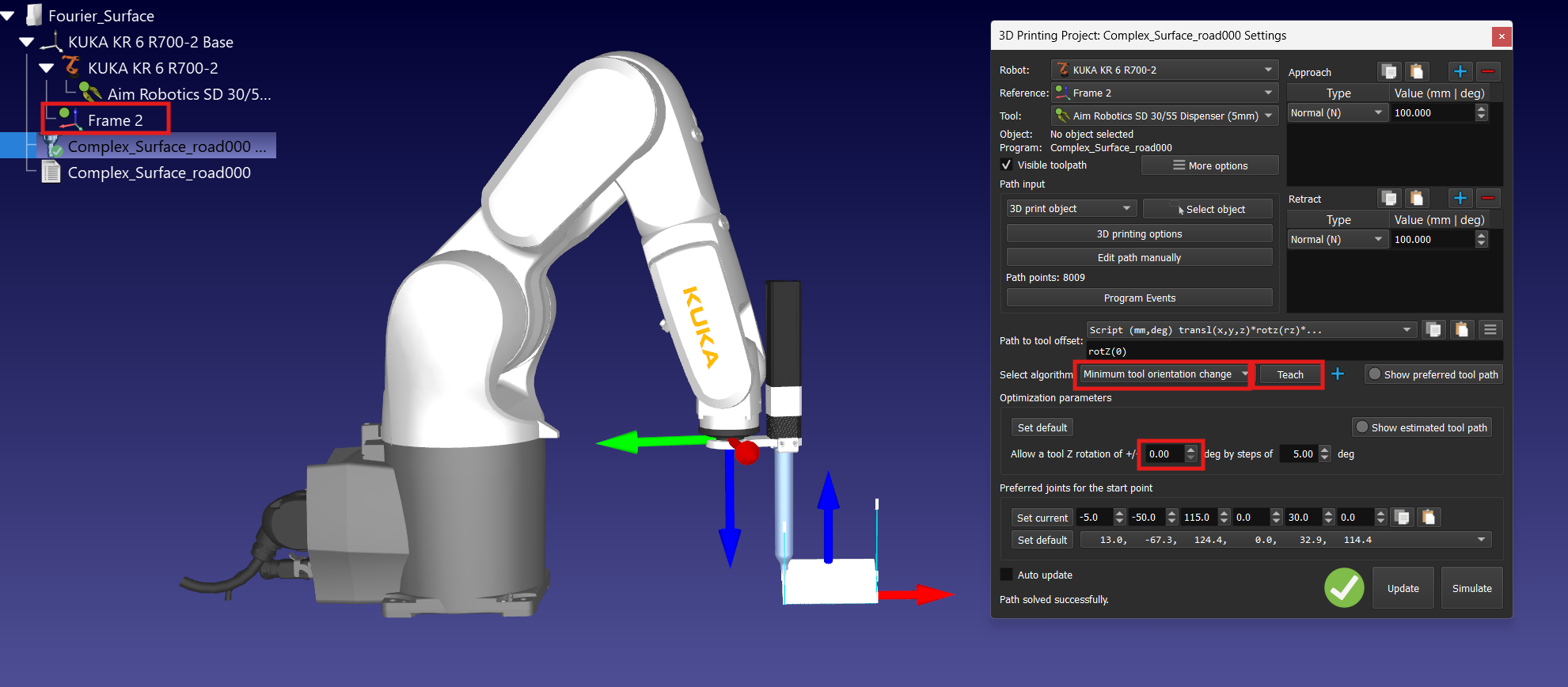

As you can see all of the toolhead tilt for now is done in the A direction (about the X-axis). Currently this is being ignored in RoboDK. I can change the output of the CAM software if needed, I just need some direction. I've read through and watched several videos on the topic, I know I'm likely missing and older post and I apologize if I've missed it.
