end of path tool orientation is not half way between 2 surface

#1

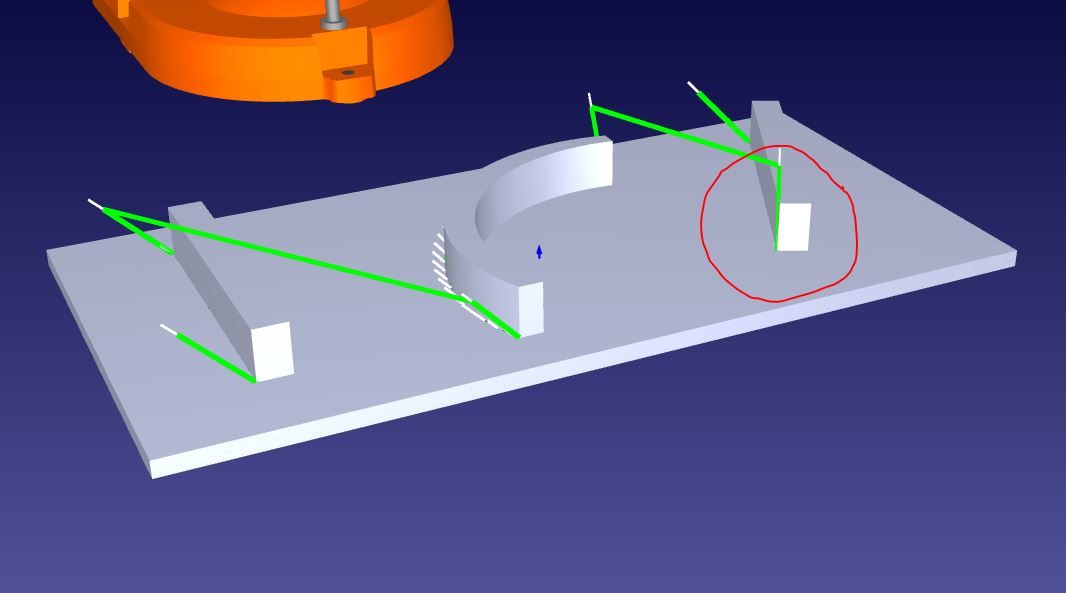

made something similar to the sample video for sw plug-in auto setup. the object and path transfer to robodk without problem. however, the last point of the curve, the tool orientation does not fall between the two picked surfaces. as i understand, it is not possible to change orientation for just one point one the curve.



what could have went wrong?


Attached Files
.rdk   ABB1600-TEST.rdk (Size: 118.58 KB / Downloads: 423)
#2
Can you provide the SolidWorks file?

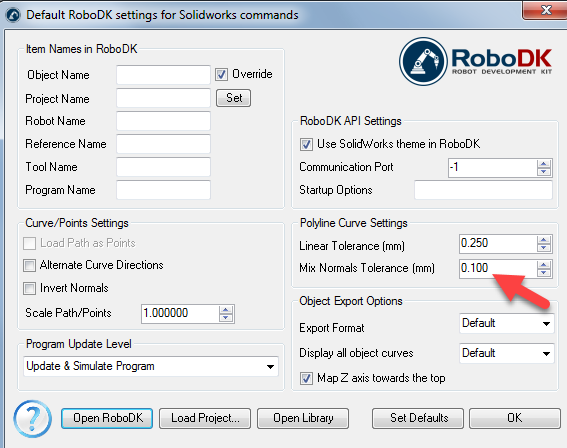

It may help if you increase the "Mix normals tolerance":
https://robodk.com/doc/en/Plugin-SolidWo...SWSettings

This value is a threshold to combine surfaces within similar distance to your curve. The combination of different surfaces gives you approach normals at 45 deg with respect to both surfaces.


#3
setting the Mix Normals Tolerance to 0.05mm did the trick. thank you!
