09-14-2018, 09:10 AM
Hey friends,

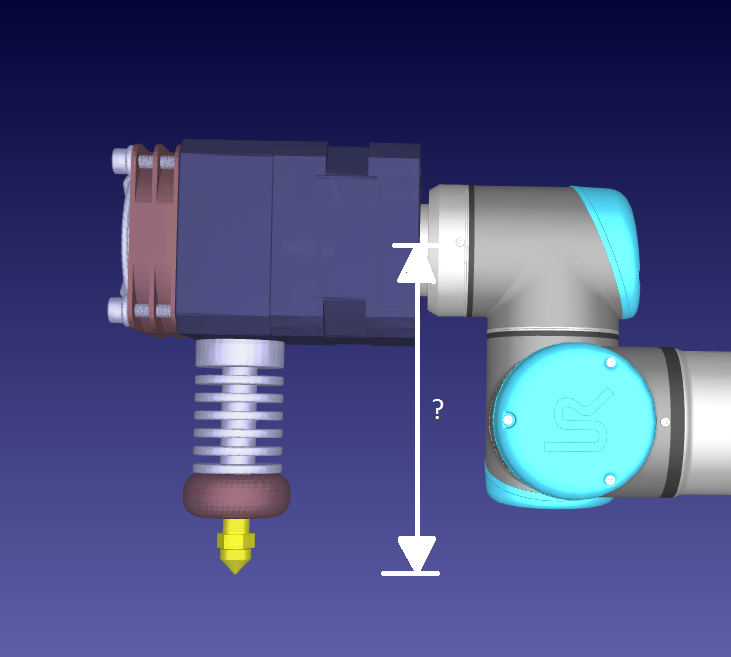

how can i adjust the distance between the robot flange and the extruder nozzle?
regards
how can i adjust the distance between the robot flange and the extruder nozzle?
regards
3D-Printing# Distance between robot flange and extdruder nozzle |
09-14-2018, 09:10 AM
Hey friends,
how can i adjust the distance between the robot flange and the extruder nozzle? regards
10-04-2018, 01:26 PM
You can double click the robot tool (extruder) and enter the XYZ coordinates. You can also hold Alt+Shift and you'll be able to drag the tool and modify the position with respect to the robot.
If you don't have a 3D model or your 3D model is not very accurate you can follow these steps to define the tool by taking the same point using different orientations: https://robodk.com/doc/en/General.html#CalibrateTCP
10-07-2018, 05:43 AM
(10-04-2018, 01:26 PM)Albert Wrote: You can double click the robot tool (extruder) and enter the XYZ coordinates. You can also hold Alt+Shift and you'll be able to drag the tool and modify the position with respect to the robot. Hey Albert, thank you very much! regards |
