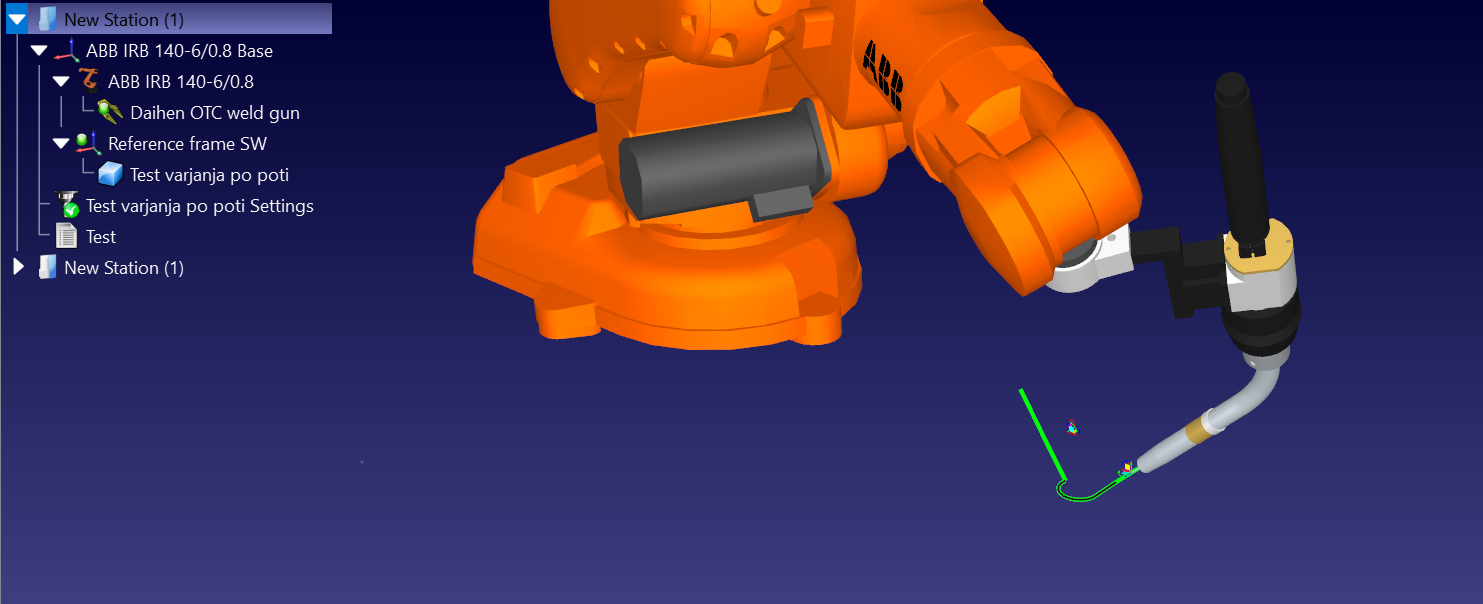

recently I have tried to make a path on an example that can be seen in attachment (RoboDK - LoadCurves1.png).
I have used AutoSetup on letter L that is shown in picture. So far so good, but problem start with adding another path to RoboDK with function LoadCurves in SolidWorks. After applying LoadCurves on letter S in SolidWorks, CAD model and path made on L letter disappear, visible is only path on S letter. (you can see that in attachment RoboDK - LoadCurves2.png).
I have tried all Object export options under settings in SolidWorks RoboDK Add-In (default, stl, igs, step) and none of that options makes any difference.
Any other ideas what I could be doing wrong?
Thanks in advance, Jakob
