[MarkusL]

Hi,

I am currently working on setting up a curve-follow-project using the Python API.

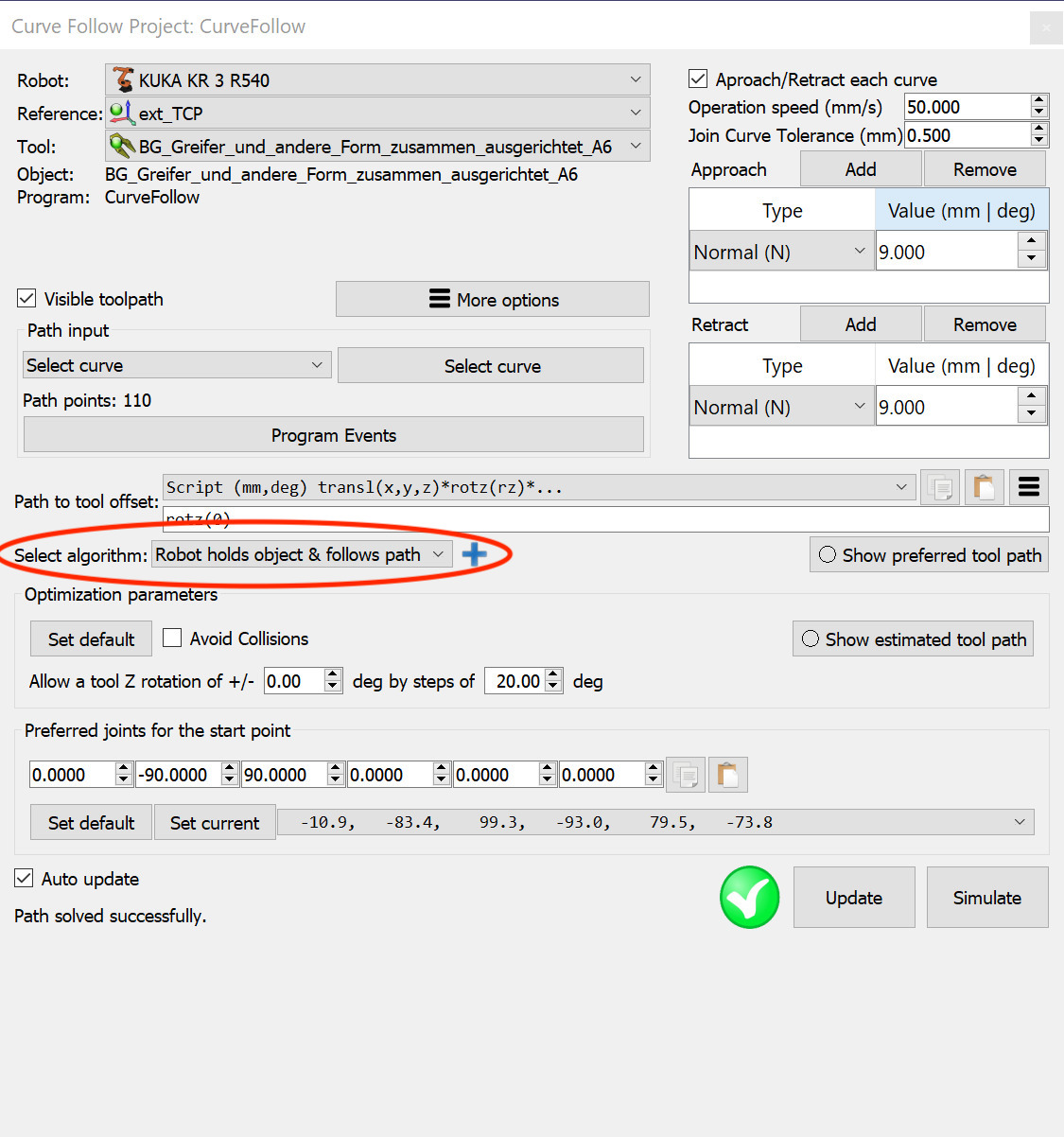

I need to specify the algorithm to "Robot holds object & follows path". (See picture)
Currently I have to do that by hand.



setMachiningParameters(ncfile='', part=0, params='')
offers the opportunity to define additional options (params=...), like the tool orientation or the approach path. But I can't find any information in the documentation (Python and C++) on how to define the algorithm. Or a general overview of all options, which would be very helpful.

[Albert]

Hi Markus,

This example shows how you can change any setting in the robot machining menu, including the program events, using a dictionary (or a JSON string):
https://robodk.com/doc/en/PythonAPI/exam...g-settings
The next example shows how you can change the optimization parameters if you have external axes.

This method was added recently so I recommend you to update RoboDK.

Albert
