Staubli TX2-90L Robot

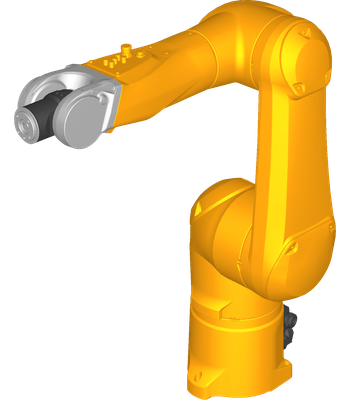

Staubli TX2-90L robot

The Staubli TX2-90L robot is a 6-axis robot arm, it offers a 5.0 kg payload and 1200 mm reach. The repeatability of the Staubli TX2-90L is 0.035 mm.

The Staubli TX2-90L is manufactured by Stäubli.

Robot Specifications

Axes6
Payload5.0 kg
Reach1200 mm
Repeatability0.035 mm
Robot Mass117 kg
