Staubli TX90



Brand Staubli
Model TX90
Type Robot Arm
Axes 6
Payload7.0 kg
Reach900 mm
Repeatability0.03 mm
Weight111 kg

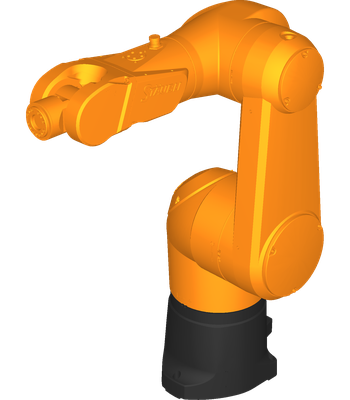

The Staubli TX90 robot is a 6-axis robot arm, it offers a 7 kg payload and 900 mm of reach. The repeatability of the Staubli TX90 robot is 0.03 mm and the robot weight is approximately 111 kg.

Common applications of the Staubli TX90 include: Dispensing, Remote TCP, Welding.

The Staubli TX90 is manufactured by Staubli.
