Nachi SRA100B-01 Robot

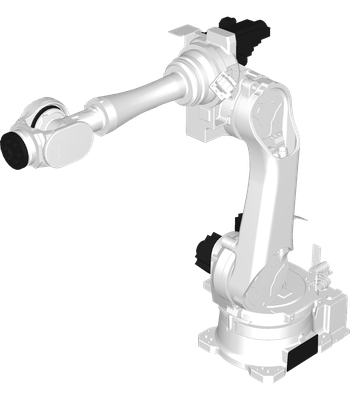

Nachi SRA100B-01 robot

The Nachi SRA100B-01 robot is a 6-axis robot arm, it offers a 100 kg payload and 2071 mm reach. The repeatability of the Nachi SRA100B-01 is 0.1 mm.

The Nachi SRA100B-01 is manufactured by Nachi.

Robot Specifications

Axes6
Payload100 kg
Reach2071 mm
Repeatability0.1 mm
Robot Mass690 kg
Download Nachi SRA100B-01 Browse library
